Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace

China Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace supplier
Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace supplier Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace supplier Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace supplier

Large Image :  Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: SYJ03100*8-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Contact Now
Detailed Product Description
Color: Optional Yearly Capacity: 1000mt
Function: Producing Copper Strip Product: Copper Strip
Working Hour: 7920h Strand NO.: 3
Size: 100*8

Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace





Main Technology Parameter Of Copper Strip Up-casting Machine



No. Item Parameter Remark
1 Model TPSYJ100*10*-I3 Adjustable as per customer’s requirements
2 Yearly capacity 1000mt
3 Total power 250KW
4 Furnace structure three- body furnace(2melting furnace,1 holding furnace) Adjustable as per customer’s requirements
5 Casting strands 3 Adjustable as per customer’s requirements
6 Copper strip size 100*8mm Adjustable as per customer’s requirements
7 Casting speed 0-150mm/min
8 annual working time 7920h
9 Liquid tracking precision ±2mm
10 Take-up coil standard 600kg/coil
11 Copper melting velocity 380kg/h Adjustable as per customer’s requirements
12 Copper melting power consumption ‹350kwh/ton
13 Take-up form Coiling
14 Feeding mode whole piece of electrolytic copper cathode fed by electric hoist

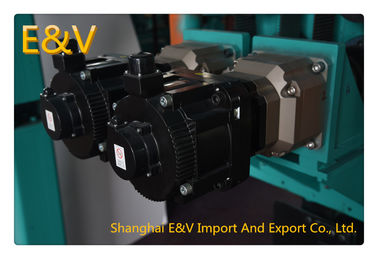

15 Driven mode 3pc copper strip:1pc 4.4kwservo motor
16 Rod clamping method Manual clamping



some questions for this machine, maybe you are interested in



1.What’s size of upcasting machine can produce?
  250*10mm 180*10mm 100*8mm

2.Which type upcasting machine can make?
Copper rod, copper tube and copper strip.

3.Can you give me technical performance of oxygen-free copper rod? And can they achieve the basic standard?


Yes, our technical performance can get the basic standard. Specific weight of the casting rod is -8.9g/cmآ², extensile rate of the casting rod is 170N/mmآ tensile strength is 38% conductivity is 100-102%IACS and oxygen content is <10ppm.

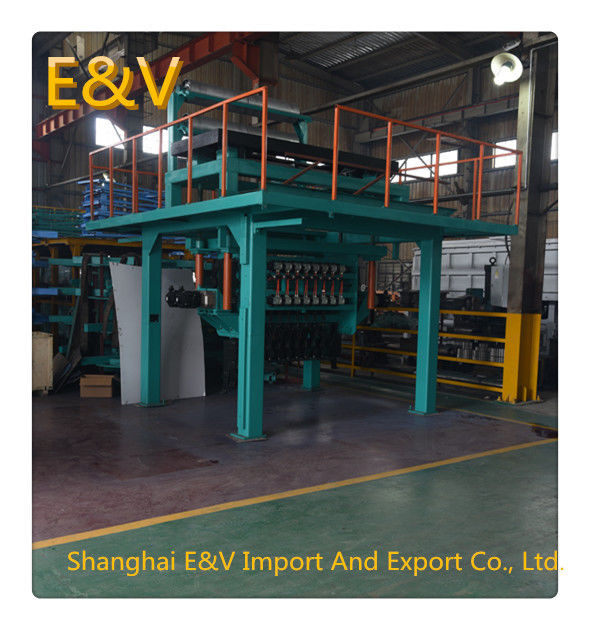

layout drawing for reference



Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace



Customized Size Copper Strip Continuous Casting Equipment 250Kw Three Body Furnace
