1000mt 180×10 Copper Sheet / Copper Plate Upward Continuous Casting Machine

China 1000mt 180×10 Copper Sheet / Copper Plate Upward Continuous Casting Machine supplier

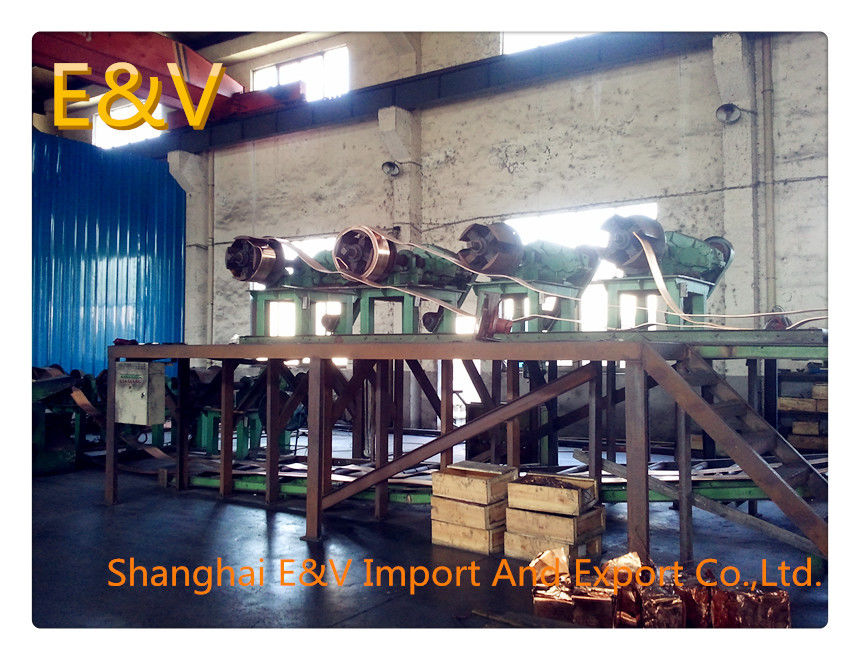

Large Image :  1000mt 180×10 Copper Sheet / Copper Plate Upward Continuous Casting Machine

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: SYJ06180*10-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Contact Now
Detailed Product Description
Color: Optional Yearly Capacity: 1000mt
Function: Producing Copper Strip Product: Copper Strip
Working Hour: 7920h Strand NO.: 3
Size: 180*10



1000mt 180×10 Copper Sheet / Copper Plate Upward Continuous Casting Machine







Main Technology Parameter Of Copper Strip Up-casting Machine



No. Item Parameter Remark
1 Model TPSYJ180*10*6-I3 Adjustable as per customer’s requirements
2 Yearly capacity 1000mt
3 Total power 250KW
4 Furnace structure three- body furnace(2melting furnace,1 holding furnace) Adjustable as per customer’s requirements
5 Casting strands 3 Adjustable as per customer’s requirements
6 Copper strip size 180*10mm Adjustable as per customer’s requirements
7 Casting speed 0-150mm/min
8 annual working time 7920h
9 Liquid tracking precision ±2mm
10 Take-up coil standard 600kg/coil
11 Copper melting velocity 380kg/h Adjustable as per customer’s requirements
12 Copper melting power consumption ‹350kwh/ton
13 Take-up form Coiling
14 Feeding mode whole piece of electrolytic copper cathode fed by electric hoist
15 Driven mode 3pc copper strip:1pc 4.4kwservo motor
16 Rod clamping method Manual clamping



some questions for this machine, maybe you are interested in



1. What’s the speed about the up-casting machine?

0-150mm/min



2. how to clamp the 180*10mm copper rod?

Manual clamping



3. what’s the character of line frequency induction furnace ?



1. Energy-efficient furnace,high-efficient of melting,long working life,a better heating preservation effect.

2. Coil current have warning function,to avoid the stoppage of copper channel.

3. The controlling of furnace temperature paperless recorder is used and is connected to the manager’s computer.All the temperature records within one moment can be checked,through which the controlling of the furnace temperature can be more effective and the rod quality can be increased.(according to clients’ need)
