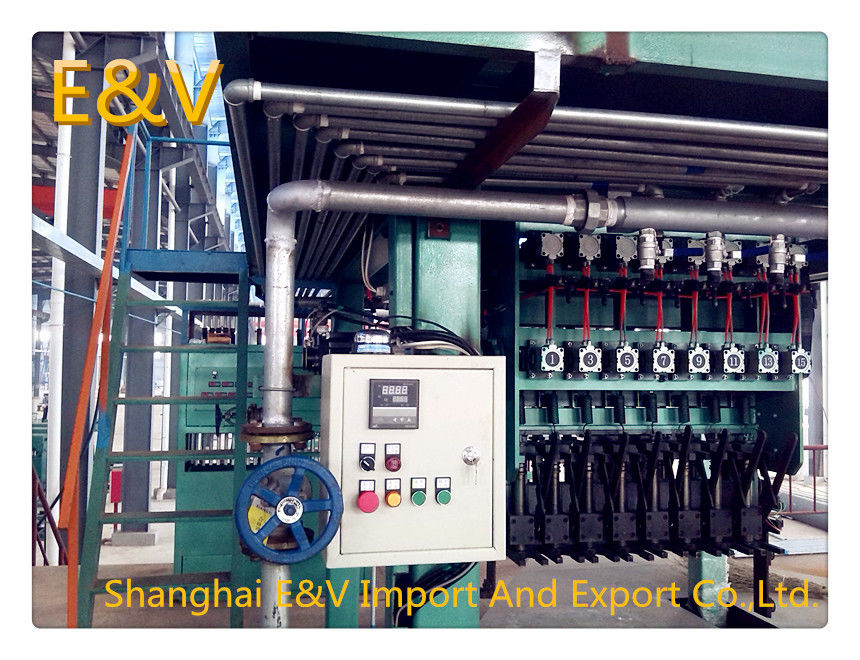

Low Oxygen Bright Copper Wire Vertical Casting Machine 3000mt Yearly Capacity

Low Oxygen Bright Copper Wire Vertical Casting Machine 3000mt Yearly Capacity
Low Oxygen Bright Copper Wire Vertical Casting Machine 3000mt Yearly Capacity

Large Image :  Low Oxygen Bright Copper Wire Vertical Casting Machine 3000mt Yearly Capacity

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ0614-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD70000.00-250000.00/SET
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 3000mt
Function: Producing Copper Rod Product: 14mm Copper Rod
Working Hour: 7920h Strand NO.: 6
High Light:

upward continuous casting machine

,

continuous casting machines

,

Bright Copper Wire Vertical Casting Machine

Low Oxygen Bright Copper Wire Vertical Casting Machine 3000mt Yearly Capacity



Feature



1. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallzing quality.



2. The paperless recorder is used and is connected to the manager’s computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased. (chose when the buyer need)



3. Energy-saving furnace is used for the upcasting line, which is having a larger power for single inductor, better melting effect, and a longer life. It has won the related patent: ZL 2010.2 0214505.5, ZL 2010.2 0214501.7, ZL 2006.2 0105926.8 ZL 2008.2 0162263.2.



i Brief introduction



The upcasting line (unit for shot as here below) is used to produce the long and bright oxygen-free copper rod. The induction melting furnace melt the copper cathode into liquid, the liquid keeps off the air by charcoal or graphite flake in case of be oxidation. The holding furnace keeps the copper liquid temperature in 1150℃±10℃, the casting machine crystallizes the copper liquid in crystallizer quickly, then continuously produces copper rod, then the final product will be finished through the double head take up machine and other accessory equipment.



Main Technology Parameter For Copper Rod Up-casting Machine1









2000MTΦ8mm→Φ14.4mm



2000MTΦ17mm→Φ30mm



3000MTΦ8mm→Φ14.4mm

Main para-meter 1 Model: SYJ0408-I2 Model: SYJ0417-I2 Model: SYJ0608-I3
2 Yearly capacity:2000mt Yearly capacity:2000mt Yearly capacity:3000mt
3 Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:4 Casting strands:4 Casting strands:6
5 Casting rod diameter : Φ8mm→Φ14.4mm Casting rod diameter : Φ17mm→Φ30mm Casting rod diameter : Φ8mm→Φ14.4mm
6 casting speed:0~3000mm/min casting speed: 0~1000mm/min casting speed: 0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:260kg/h Copper melting velocity:260kg/h Copper melting velocity:380kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:air clamping Rod clamping method: manual clamping Rod clamping method:air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:150KW AC three-phase 380V Total power:150KW AC three-phase 380V Total power:200KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine2







3000MT Ф17mm→Ф30mm



5000MT Ф8mm→Ф14.4mm



5000MT Ф17mm→Ф30mm

Main

Para-meter

1 Model: SYJ0617-I3 Model: SYJ1008-I3 Model: :SYJ1017-I3
2 Yearly capacity:3000mt Yearly capacity:5000mt Yearly capacity:5000mt
3 Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:6 Casting strands:10 Casting strands:10
5

Casting rod diameter :

Ф17mm→Ф30mm

Casting rod diameter :

Ф8mm→Ф14.4mm

Casting rod diameter :

Ф17mm→Ф30mm

6 casting speed:0~1000mm/min casting speed:0~3000mm/min casting speed:0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:380kg/h Copper melting velocity:650kg/h Copper melting velocity:650kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:manual clamping Rod clamping method:air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:200KW AC three-phase 380V Total power:240KW AC three-phase 380V Total power:240KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine3







8000MTФ8mm→Ф14.4mm



8000MTФ17mm→Ф30mm



10000MTФ8mm→Ф14.4mm

Main para-meter 1 Model :SYJ1608-I3 Model :SYJ1617-I3 Model :SYJ2008-I3
2 Yearly capacity:8000mt Yearly capacity:8000mt Yearly capacity:10000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands :16 Casting strands :16 Casting strands :20
5

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

6 Casting speed:0~3000mm/min Casting speed :0~1000mm/min Casting speed:0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1020kg/h Copper melting velocity:1020kg/h Copper melting velocity:1270kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod, manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: air clamping Rod clamping method: manual clamping Rod clamping method: air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:400KW AC three-phase 380V Total power:400KW AC three-phase 380V Total power:500KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



Main Technology Parameter For Copper Rod Up-casting Machine4







10000MTФ17mm→Ф30mm



12000MTФ8mm→Ф14.4mm



12000MTФ17mm→Ф30mm

Main para-meter 1 Model :SYJ2017-I3 Model :SYJ2408-I3 Model :SYJ2417-I3
2 Yearly capacity:10000mt Yearly capacity:12000mt Yearly capacity:12000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:20 Casting strands:24 Casting strands:24
5

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

6 Casting speed :0~1000mm/min Casting speed 0~3000mm/min Casting speed 0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1270kg/h Copper melting velocity:1520kg/h Copper melting velocity:1520kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by rod ,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod ,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: manual clamping Rod clamping method: air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:500KW AC three-phase 380V Total power:600KW AC three-phase 380V Total power:600KW AC three-phase 380V


price



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



2 technical process

Put copper cathode over the furnace by the lifting system for baking→Adjust the feeding speed according to the casting speed. Feed the copper cathode into the melting furnace for melting (charcoal to be used for avoiding oxidization) → copper liquid flows into the transition part (charcoal is still needed to avoid oxidization) → Copper liquid flows into the holding furnace → Copper liquid flows into the crystallizer to be copper rods → copper rods enter into traction device for upward movement → Go through the output frame →copper rods go through the distribution frame (to separate each rod) → copper rods go through the tension frame ( to control the take-up speed) → copper rods go through the take-up machine,for coiling → Next process
