Continuous Copper Vertical Upward Casting Machine 8000mt Yearly Capacity

Continuous Copper Vertical Upward Casting Machine 8000mt Yearly Capacity
Continuous Copper Vertical Upward Casting Machine 8000mt Yearly Capacity

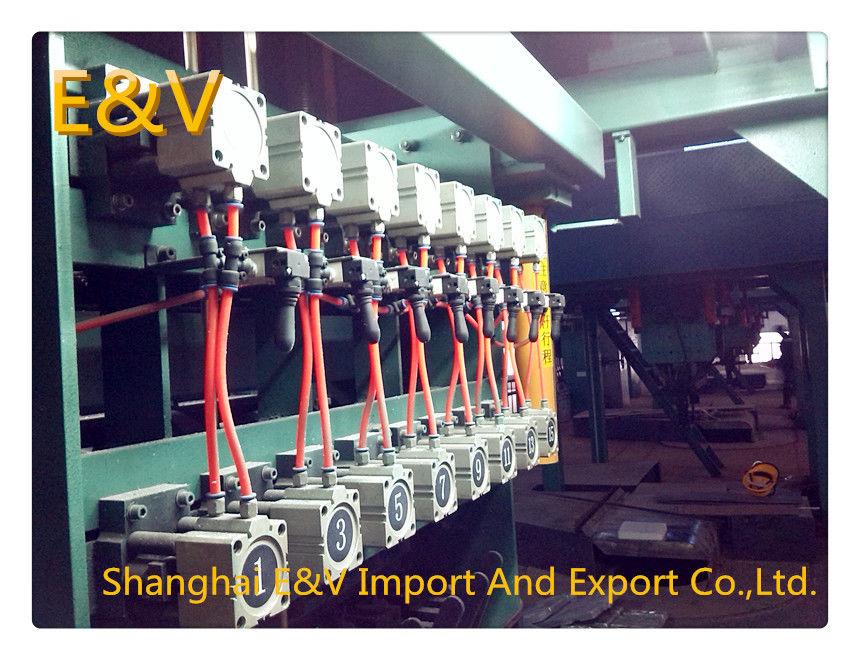

Large Image :  Continuous Copper Vertical Upward Casting Machine 8000mt Yearly Capacity

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ1617-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 8000mt
Function: Producing Copper Rod Product: 17mm Copper Rod
Working Hour: 7920h Strand NO.: 16
High Light:

upward continuous casting machine

,

Vertical Casting Machine

,

7920h Vertical Upward Casting Machine

Continuous Copper Vertical Upward Casting Machine 8000mt Yearly Capacity



Feature



1. The paperless recorder is used and is connected to the manager’s computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased. (chose when the buyer need)



2. The thickness of the furnace is increased, e.g., the furnace for 5000 type is 1.6 meters which is having a better heating preservation effect.



3. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallzing quality.







The upcasting line (unit for shot as here below) is used to produce the long and bright oxygen-free copper rod. The induction melting furnace melt the copper cathode into liquid, the liquid keeps off the air by charcoal or graphite flake in case of be oxidation. The holding furnace keeps the copper liquid temperature in 1150℃±10℃, the casting machine crystallizes the copper liquid in crystallizer quickly, then continuously produces copper rod, then the final product will be finished through the double head take up machine and other accessory equipment.



Main Technology Parameter For Copper Rod Up-casting Machine1









2000MTΦ8mm→Φ14.4mm



2000MTΦ17mm→Φ30mm



3000MTΦ8mm→Φ14.4mm

Main para-meter 1 Model: SYJ0408-I2 Model: SYJ0417-I2 Model: SYJ0608-I3
2 Yearly capacity:2000mt Yearly capacity:2000mt Yearly capacity:3000mt
3 Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:4 Casting strands:4 Casting strands:6
5 Casting rod diameter : Φ8mm→Φ14.4mm Casting rod diameter : Φ17mm→Φ30mm Casting rod diameter : Φ8mm→Φ14.4mm
6 casting speed:0~3000mm/min casting speed: 0~1000mm/min casting speed: 0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:260kg/h Copper melting velocity:260kg/h Copper melting velocity:380kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:air clamping Rod clamping method: manual clamping Rod clamping method:air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:150KW AC three-phase 380V Total power:150KW AC three-phase 380V Total power:200KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine2







3000MT Ф17mm→Ф30mm



5000MT Ф8mm→Ф14.4mm



5000MT Ф17mm→Ф30mm

Main

Para-meter

1 Model: SYJ0617-I3 Model: SYJ1008-I3 Model: :SYJ1017-I3
2 Yearly capacity:3000mt Yearly capacity:5000mt Yearly capacity:5000mt
3 Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:6 Casting strands:10 Casting strands:10
5

Casting rod diameter :

Ф17mm→Ф30mm

Casting rod diameter :

Ф8mm→Ф14.4mm

Casting rod diameter :

Ф17mm→Ф30mm

6 casting speed:0~1000mm/min casting speed:0~3000mm/min casting speed:0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:380kg/h Copper melting velocity:650kg/h Copper melting velocity:650kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:manual clamping Rod clamping method:air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:200KW AC three-phase 380V Total power:240KW AC three-phase 380V Total power:240KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine3







8000MTФ8mm→Ф14.4mm



8000MTФ17mm→Ф30mm



10000MTФ8mm→Ф14.4mm

Main para-meter 1 Model :SYJ1608-I3 Model :SYJ1617-I3 Model :SYJ2008-I3
2 Yearly capacity:8000mt Yearly capacity:8000mt Yearly capacity:10000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands :16 Casting strands :16 Casting strands :20
5

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

6 Casting speed:0~3000mm/min Casting speed :0~1000mm/min Casting speed:0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1020kg/h Copper melting velocity:1020kg/h Copper melting velocity:1270kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod, manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: air clamping Rod clamping method: manual clamping Rod clamping method: air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:400KW AC three-phase 380V Total power:400KW AC three-phase 380V Total power:500KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



Main Technology Parameter For Copper Rod Up-casting Machine4







10000MTФ17mm→Ф30mm



12000MTФ8mm→Ф14.4mm



12000MTФ17mm→Ф30mm

Main para-meter 1 Model :SYJ2017-I3 Model :SYJ2408-I3 Model :SYJ2417-I3
2 Yearly capacity:10000mt Yearly capacity:12000mt Yearly capacity:12000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:20 Casting strands:24 Casting strands:24
5

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

6 Casting speed :0~1000mm/min Casting speed 0~3000mm/min Casting speed 0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1270kg/h Copper melting velocity:1520kg/h Copper melting velocity:1520kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by rod ,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod ,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: manual clamping Rod clamping method: air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:500KW AC three-phase 380V Total power:600KW AC three-phase 380V Total power:600KW AC three-phase 380V


price



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



2 Unit composition



The unit includes power frequency induction furnace, continuous casting machine, rack of directive wheels, tension device, two-stroke coiler, cooling system, electric system,feeding system and measure temperature system and so on.



3. Consumable list



One year consumable list for SYJ1008-I3(None scope of supply)



No. Name Specification unit Qty
1 Graphite die Φ8mm pcs 5ton / pc
2 Graphite protect sleeve Φ8mm pcs 5ton / pc
3 Insulation sleeve Φ8mm pcs 5ton / pc
4 Crystallizer Φ8mm pcs 250ton / pc
5 Crystallizer inner tube Φ8mm pcs 250ton / pc
6 Water jacket   pcs 3pcs/year
7 Coil   pcs 3pcs/year
8 Copper channel   pcs 3pcs/year
9 Quartz sand Mix sand ton 5.5ton/year
10 Mold brick   set 1set/year
11 Straight light brick   set 1set/year
12 Wedge-shaped light brick   set 1set/year
13 Fiber board δ=20mm case 2box/year
14 Asbestos plate δ=5mm case 1box/year
15 Quick connector DG15 pcs 24pcs/year
16 Fiber glass   coil 150coil/year
17 Hose assembly 1600mm pcs 10pcs/year
18 Charcoal   kg 5kg/ton
19 Graphite flake 3299 kg 0.5kg/ton
