3000 Tons Copper Strip Vertical Continuous Casting Machine With Air Clamping

China 3000 Tons Copper Strip Vertical Continuous Casting Machine With Air Clamping supplier

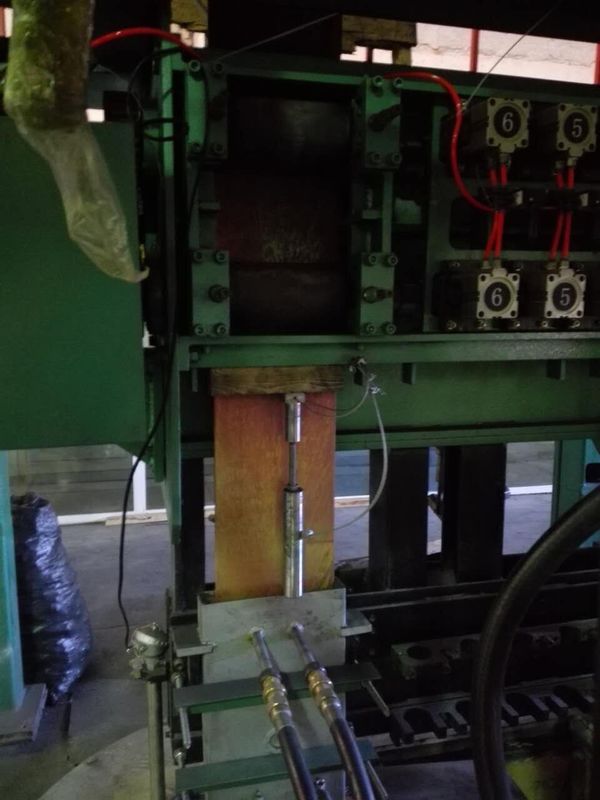

Large Image :  3000 Tons Copper Strip Vertical Continuous Casting Machine With Air Clamping

Product Details:

Place of Origin: China
Brand Name: E&V

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Contact Now
Detailed Product Description
Yearly Capacity: 1000mt-3000mt Function: Producing Copper Strip
Product: Copper Strip/sheet/ Plate Working Hour: 7920h
Strand NO.: 3 Annual Capacity: 3000tons

3000 Tons Copper Strip Vertical Continuous Casting Machine With Air Clamping





The continuous casting machine is the main part to realize the continuous up-casting which includes the traction system, the level tracking system and the crystallizer, the structure is gantry four pillar.



1. main parameter



No. Item Data
1 Model No.
2 Annual capacity 3000tons
3 Casting Strands 3
4 Casting rod diameter: Ф200*10mm
5 Upward casting speed 0~150mm/min
6 Annual working time 7920h
7 Liquid tracking precision ±2mm
8 Take-up coil standard coiling
9 Copper melting velocity 760kg/h
10 Copper melting power consumption <350kwh/ton
11 Take-up form automatic adjust
12 Take-up plate driven approach inverter motor, PLC control
13 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
14 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
15 Rod clamping method air clamping





The traction system includes two units of servo motor, reducer and traction rolling wheel, it could make 0-600 times high speed interval motion and make the copper rod come up though the traction rolling wheel, each unit of traction system could drive 5 pair traction rolling wheel, and drag3 pcs copper rod separately.



The automatic level track system could insure that the crystallizer is in the stable depth in the copper liquid, and to make sure the producing is continuously.



The crystallizer could freeze the copper quick into solid-state by cooling it and realize the heat exchange, each crystallizer can be change and be controlled separately without any influence of other crystallizers’ normal working.
