Automatic Adjust Upward Casting Machine 240Kw With Rod Manual Clamping

China Automatic Adjust Upward Casting Machine 240Kw With Rod Manual Clamping supplier

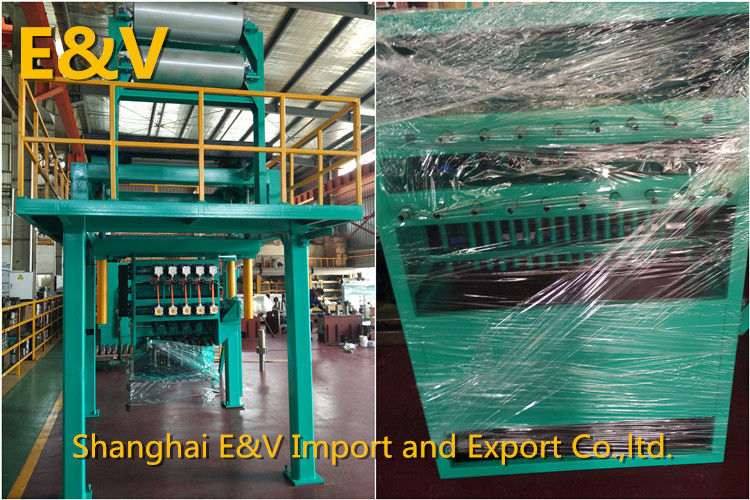

Large Image :  Automatic Adjust Upward Casting Machine 240Kw With Rod Manual Clamping

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: SYJ1017-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 5000mt
Function: Producing Copper Rod Strand: 10
Material: Steel Product Size: 17mm

Automatic Adjust Upward Casting Machine 240Kw With Rod Manual Clamping



Feature



1. Energy-saving furnace is used for the upcasting line, which is having a larger power for single inductor, better melting effect, and a longer life. It has won the related patent: ZL 2010.2 0214505.5, ZL 2010.2 0214501.7, ZL 2006.2 0105926.8 ZL 2008.2 0162263.2.



2. The paperless recorder is used and is connected to the manager’s computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased. (chose when the buyer need)



3. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.



i  Brief introduction



   The holding furnace keeps the copper liquid temperature in 1150℃±10℃, the casting machine crystallizes the copper liquid in crystallizer quickly, then continuously produces copper rod, then the final product will be finished through the double head take up machine and other accessory equipment.



Main Technology Parameter For Copper Rod Up-casting Machine1









2000MTΦ8mm→Φ14.4mm



2000MTΦ17mm→Φ30mm



3000MTΦ8mm→Φ14.4mm

Main para-meter 1 Model: SYJ0408-I2 Model: SYJ0417-I2 Model: SYJ0608-I3
2 Yearly capacity:2000mt Yearly capacity:2000mt Yearly capacity:3000mt
3 Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:4 Casting strands:4 Casting strands:6
5 Casting rod diameter : Φ8mm→Φ14.4mm Casting rod diameter : Φ17mm→Φ30mm Casting rod diameter : Φ8mm→Φ14.4mm
6 casting speed:0~3000mm/min casting speed: 0~1000mm/min casting speed: 0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:260kg/h Copper melting velocity:260kg/h Copper melting velocity:380kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:air clamping Rod clamping method: manual clamping Rod clamping method:air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:150KW AC three-phase 380V Total power:150KW AC three-phase 380V Total power:200KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine2







3000MT Ф17mm→Ф30mm



5000MT Ф8mm→Ф14.4mm



5000MT Ф17mm→Ф30mm

Main

Para-meter

1 Model: SYJ0617-I3 Model: SYJ1008-I3 Model: :SYJ1017-I3
2 Yearly capacity:3000mt Yearly capacity:5000mt Yearly capacity:5000mt
3 Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:6 Casting strands:10 Casting strands:10
5

Casting rod diameter :

Ф17mm→Ф30mm

Casting rod diameter :

Ф8mm→Ф14.4mm

Casting rod diameter :

Ф17mm→Ф30mm

6 casting speed:0~1000mm/min casting speed:0~3000mm/min casting speed:0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:380kg/h Copper melting velocity:650kg/h Copper melting velocity:650kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:manual clamping Rod clamping method:air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:200KW AC three-phase 380V Total power:240KW AC three-phase 380V Total power:240KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine3







8000MTФ8mm→Ф14.4mm



8000MTФ17mm→Ф30mm



10000MTФ8mm→Ф14.4mm

Main para-meter 1 Model :SYJ1608-I3 Model :SYJ1617-I3 Model :SYJ2008-I3
2 Yearly capacity:8000mt Yearly capacity:8000mt Yearly capacity:10000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands :16 Casting strands :16 Casting strands :20
5

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

6 Casting speed:0~3000mm/min Casting speed :0~1000mm/min Casting speed:0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1020kg/h Copper melting velocity:1020kg/h Copper melting velocity:1270kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod, manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: air clamping Rod clamping method: manual clamping Rod clamping method: air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:400KW AC three-phase 380V Total power:400KW AC three-phase 380V Total power:500KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



Main Technology Parameter For Copper Rod Up-casting Machine4







10000MTФ17mm→Ф30mm



12000MTФ8mm→Ф14.4mm



12000MTФ17mm→Ф30mm

Main para-meter 1 Model :SYJ2017-I3 Model :SYJ2408-I3 Model :SYJ2417-I3
2 Yearly capacity:10000mt Yearly capacity:12000mt Yearly capacity:12000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:20 Casting strands:24 Casting strands:24
5

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

6 Casting speed :0~1000mm/min Casting speed 0~3000mm/min Casting speed 0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1270kg/h Copper melting velocity:1520kg/h Copper melting velocity:1520kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by rod ,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod ,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: manual clamping Rod clamping method: air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:500KW AC three-phase 380V Total power:600KW AC three-phase 380V Total power:600KW AC three-phase 380V


price



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



Unit instructions



1. furnace



The line frequency induction furnace includes furnace body ,furnace frame and inductor.

The shell of the furnace is made of welded steel, inside part is made of casted refractory brick and quarts sand. Furnace frame is used for propping up the whole furnace, it is fastened on the foundation by ground bolt, inductor composed of coil, water jacket, iron core and copper channel.The high voltage side of the inductor(primary)includes coil with cooling water, the voltage could be adjusted form 90V-420V(holding furnace is 90V-380V), the low voltage side of the inductor(secondary)includes short circuited copper channel, after electrifying, it will produce big current in copper channel with the action of electromagnetism induction, and melt the copper channel and also melt the cathode at the same time .

Water jacket and coil all need to be cooled by water, the water can be recycling used, and is supplied by the cooling water system.



2. casting machine (traction)

The continuous casting machine is the main part to realize the continuous upcasting which includes the traction system, the level tracking system and the crystallizer, the structure is gantry four pillar.

The traction system includes two units of servo motor, reducer and traction rolling wheel, it could make 0-600 times high speed interval motion and make the copper rod come up though the traction rolling wheel, each unit of traction system could drive 5 pair traction rolling wheel, and drag 5 pcs copper rod separately.

The automatic level track system could insure that the crystallizer is in the stable depth in the copper liquid, and to make sure the producing is continuously.

The crystallizer could freeze the copper quick into solid-state by cooling it and realize the heat exchange, each crystallizer can be change and be controlled separately without any influence of other crystallizers’ normal working.



3. tension frame

The take up synchronizing device is a device which is set up between the output frame and the double head take up machine. There are ten units of displacement transducers and swing link. By controlling the angle of the swing link, the speed of the take up machine can be controlled with high accuracy and high sensitivity, meantime it can supply the reliable signal for the automatic control.



4. take-up

The double head take up machine includes the traction roller, the coiling device and the coiling plate. Each unit of the take up machine includes four or three motors controlling the two sides of take up device for two rods, the max coiling weight is 3.5ton.



5. electrical pannel

The electric control system includes the power system and controlling system. The power system supplies the power to each inductor through several power panels. The control system assures the normal producing, the recording and displaying of the data. The detail recording and displaying information is inductor voltage, current, furnace temperature, water temperature(including the crystallizer water temperature), traction speed and traction distance etc.



Automatic Adjust Upward Casting Machine 240Kw With Rod Manual Clamping
