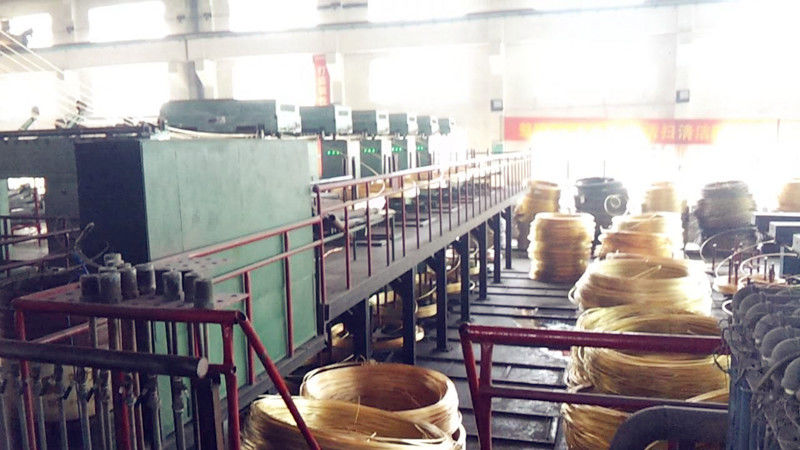

Customized High Precision Cold Chamber Brass Casting Machine 3000 mm/min

Customized High Precision Cold Chamber Brass Casting Machine 3000 mm/min
Customized High Precision Cold Chamber Brass Casting Machine 3000 mm/min

Large Image :  Customized High Precision Cold Chamber Brass Casting Machine 3000 mm/min

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ1008-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Yearly Capacity: 5000mt Product: Brass Rod
Working Hour: 7920h Strand NO.: 6-20
Casting Rod Diameter: Ф8mm→Ф14.4mm Casting Speed: 0~3000mm/min
High Light:

Brass Casting equipment

,

continuous caster machine

,

High Precision Brass Casting Machine

Customized High Precision Cold Chamber Brass Casting Machine 3000 mm/min


Feature:

Operation interface:date display,servo motor controlled by touch screen
Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist

Main Technology Parameter For Copper Rod Up-casting Machine2






3000MT Ф17mm→Ф30mm


5000MT Ф8mm→Ф14.4mm


5000MT Ф17mm→Ф30mm

Main
Para-meter

1 Model: SYJ0617-I3 Model: SYJ1008-I3 Model: :SYJ1017-I3
2 Yearly capacity:3000mt Yearly capacity:5000mt Yearly capacity:5000mt
3 Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:6 Casting strands:10 Casting strands:10
5

Casting rod diameter :
Ф17mm→Ф30mm

Casting rod diameter :
Ф8mm→Ф14.4mm

Casting rod diameter :
Ф17mm→Ф30mm

6 casting speed:0~1000mm/min casting speed:0~3000mm/min casting speed:0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:
φ700mm×φ1500mm×800mm

Take-up coil standard:
φ700mm×φ1500mm×800mm

Take-up coil standard:
φ700mm×φ1500mm×800mm

10 Copper melting velocity:380kg/h Copper melting velocity:650kg/h Copper melting velocity:650kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:manual clamping Rod clamping method:air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:200KW AC three-phase 380V Total power:240KW AC three-phase 380V Total power:240KW AC three-phase 380V

Price

A price: price negotiable
AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )
AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)


A price: price negotiable
AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )
AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)


A price: price negotiable
AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )
AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





some questons for uo castng machine, maybe u are interested in

1. How many types of furnace?
Single body furnace, double body furnace,3-body furnace,4-body furnace and 5-body furnace. And different capacity can use different furnace. Sometimes, we may refer to client’s request.
2. What's the main technology process of upcasting machine?
The upcasting line (unit for shot as here below) is used to produce the long and bright oxygen-free copper rod. The induction melting furnace melt the copper cathode into liquid, the liquid keeps off the air by charcoal or graphite flake in case of be oxidation. The holding furnace keeps the copper liquid temperature in 1150℃آ±10℃, the casting machine crystallizes the copper liquid in crystallizer quickly, then continuously produces copper rod, then the final product will be finished through the double head take up machine and other accessory equipment.
3. How many features of upcasting machine?
1. Energy-efficient furnace,high-efficient of melting,long working life,a better heating preservation effect.
2. Coil current have warning function,to avoid the stoppage of copper channel.
3. Quick lifting device is used for installing and changing the crystallizer.High-speed installing (within 10 seconds). Using Emergency situation
4. The controlling of furnace temperature paperless recorder is used and is connected to the manager’s computer.All the temperature records within one moment can be checked,through which the controlling of the furnace temperature can be more effective and the rod quality can be increased.(according to clients’ need)
