8mm - 3mm three phase 9D copper rod breakdown machine 380V AC 50HZ

Good services and efficient works,I'd like to cooperation with them, it's my best eyes in china.

—— Raymond

Your goods are prefect in quality compared with those of other manufacturers.

—— Mr. Anil

I'm Online Chat Now

8mm - 3mm three phase 9D copper rod breakdown machine 380V AC 50HZ

China 8mm - 3mm three phase  9D copper rod breakdown machine 380V AC 50HZ supplier

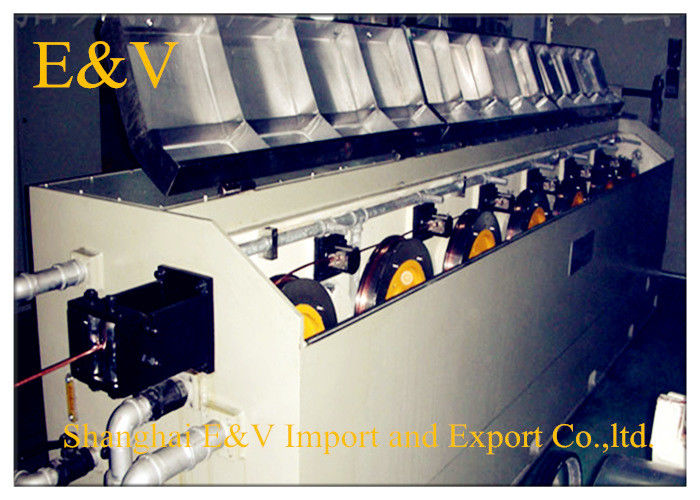

Large Image :  8mm - 3mm three phase 9D copper rod breakdown machine 380V AC 50HZ

Product Details:

Place of Origin: China
Brand Name: E&V

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: standard export packing
Delivery Time: 20DAYS
Supply Ability: 1 SET PER 20 DAYS
Contact Now
Detailed Product Description
Inlet Dia: 8mm Outlet Dia: 3mm
Line Speed: 800MPM Structure Of Machine: Weld
Total Power: 160kw Condition: New

8mm-3mm three phase 380V (AC) 50HZ 9D copper rod breakdown machine

1. Ironed cast

2. Horizontal structure, dual driving motors, owning rapid die change system.

3. High precision gear transmission, high efficiency, low noise.

4. Fully immersed way to lubricate and cool, which can guarantee the quality of drawing wire.

5. Annealing device is inclined, which is convenient for workers to cross wire. Special designed air pipe to send air to the axis of annealing wheel.





NO.
Item
Parameter
1
model
DL400-9D big drawing machine for copper wire
2
inlet dia
Φ8mm
3
outlet dia
Φ3mm~Φ2.6mm
4
Drawing die numbers
9
5
line speed (max)
800MPM
6
structure of machine
weld



7
Drawing speed
2t/h
8
Area reduction rate of m/c
23.6%
9
capstan reduction rate of m/c
20%
10
capstan
Tungsten carbide
11
capstan dia (max)
Φ400
12
Fix speed capstan dia (mm)
Φ400
13
Total power
160kw,DC motor
14
coiling power
11kw /15kw three phase AC frequency motor
15
the way of controlling speed
AC control +frequency control
16
transmission way
Grinding gear(20CrMnTi Sophisticated helical gear )
17
Pay off way
Overhead
18
Cooling way
Fully immersed
19
service voltage
Three phase 380V(AC),50Hz


Shanghai Congkang Imp & Exp Co., Ltd company profile



Founded in October, 2015, Shanghai Congkang Imp & Exp Co., Ltd is handling with import and export business for oxygen-free copper rod continuous casting machine, continuous casting and rolling machine for copper or aluminum rod, copper rod rolling mill and other metal complete plants.

Oxygen-free copper rod continuous casting machine can produce copper from Ф8mm to Ф35mm. Stable operation, good quality and nice coiling are our charming features and some foreign clients are fond of our goods vastly. Copper rod rolling mill from Ф17mm to Ф8mm has two roller stands or three roller stands. They are sell well in Malaysia, Thailand, North Korea, Egypt, Algeria and other areas and countries for their appearance,

We are located in Shanghai Free Trade Zone, which is gathered with China’s economy, finance, trading and shipping. At mouth of Yangtze, Shanghai closes to south Hangzhou bay and west Jiangsu and Zhejiang provinces and convenient transportation is the best character. Creation, quality and service are our founding ideas. We devote ourselves to attract new creation, control product quality, full services tracking and be high quality equipment. At present, we are growing well, good reputation and services are getting trust of customers at home and abroad. Now we sincerely hope that you and me hand in hand to create more beautiful future life!
