12Dt Copper Wire Rod Drawing Machine , 2500 MPM/ MAX Wire Drawing Machinery

China 12Dt Copper Wire Rod Drawing Machine , 2500 MPM/ MAX Wire Drawing Machinery supplier

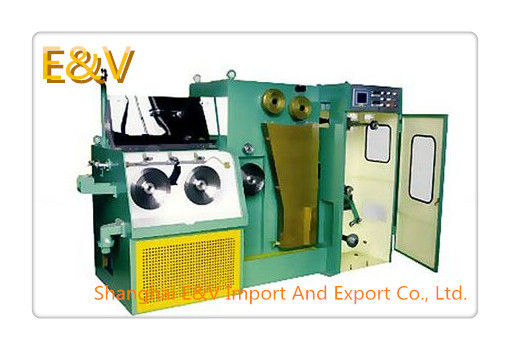

Large Image :  12Dt Copper Wire Rod Drawing Machine , 2500 MPM/ MAX Wire Drawing Machinery

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: 9D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standred export packing
Delivery Time: 45 days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Color: Optional Machine Name: RBD/ Big Drawing Machine
Product Dia: 8mm Output Speed: 800m/min
Output Size: 3/2.6mm Feature: Efficient,high-quality

12Dt Copper Wire Rod Drawing Machine , 2500 MPM/ MAX Wire Drawing Machinery


No.Name Date
1 Input diameter
Φ1.0 —Φ0.5mm

2 Output wire diameter
Φ0.25 —Φ0.08mm

3 Output speed
2500 MPM/ MAX

4 No.Of die (Max)
24pcs (one set provided by the seller); outside diameter specifi-cation Φ25mm×8

5 Wire-drawing area reduction
NO.1-NO. 23 die: 13% NO. 24 die: 8%

6 Wire-drawing mode
4 bearings of vertical type, horizonal wire-drawing slipping continuous wire-drawing

7 Power
main motor: 15HP(11KW) AC motor controlled by inverter
Coiling motor: 5.5HP(3.7KW) AC motor controlled by inverter

8 Machine composition
integrated casting

9 Transmission part
whole machine transmit by flat belt

10 Wire-drawing wheel
chromic oxide sprayed on the surface

11 Wire-drawing lubrication system
40 L/min of wiredrawing oil needed ( not include water pump); spray over die and wire-drawing wheel

12 Wire-setting mode
110W Low-speed synchronous motor; width (Max): 270mm

13 Coiling control mode
equip heavy tension buffer rod, automatically calculate, amend and control coiling tension.
