8M Tooth Type Belt Drive Metal Drawing Machine Button Control For 3-2.6 mm Aluminum Wire

China 8M Tooth Type Belt Drive Metal Drawing Machine Button Control For 3-2.6 mm Aluminum Wire supplier

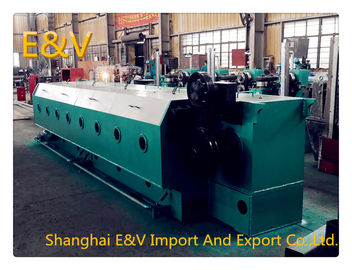

Large Image :  8M Tooth Type Belt Drive Metal Drawing Machine Button Control For 3-2.6 mm Aluminum Wire

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: 9D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standred export packing
Delivery Time: 45 days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Color: Optional Machine Name: RBD/ Big Drawing Machine
Product Dia: 8mm Output Speed: 800m/min
Output Size: 3/2.6mm Feature: Efficient,high-quality

8M Tooth Type Belt Drive Metal Drawing Machine Button Control For 3-2.6 mm Aluminum Wire





1, inlet:1.6mm-2.5mm; outlet:0.3mm-1.0mm

2, main motor:15kw,with 15kw transducer; take up:4kw,with 4kw transducer

3, drawbench drive:8M tooth type belt(hold-in range),take up drive:flat belt

4, highest speed:1500m/minute

5, reduce face rate:15%+12%

6, the way of control:buttoned

7, the way of braking:electromagentic brake,the diameter of take up plate is 300(load 50kg)use 10kg braking,the diameter of take up plate(load 80kg)use 20kg braking

8, lubricating system:half soak+ spray type

9, cone pulley:four 9 tier with one tier constant speed,max dia:250mm,45# surface of forged steel deal with spurt porcelain.

10, main motor body:steel plate welding fabrication,anneal deal with distressing

11, contour dia:2700*1300*1900

12, Weight:2.2t

8M Tooth Type Belt Drive Metal Drawing Machine Button Control For 3-2.6 mm Aluminum Wire
