2 Roller Copper Rod Fat Bar Rolling Machines / Brass Fat Wire Roll Mill

2 Roller Copper Rod Fat Bar Rolling Machines / Brass Fat Wire Roll Mill
2 Roller Copper Rod Fat Bar Rolling Machines / Brass Fat Wire Roll Mill

Large Image :  2 Roller Copper Rod Fat Bar Rolling Machines / Brass Fat Wire Roll Mill

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф20-Ф8)-10P-C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rolling Mill Rolling Size: 20-8
Rolling Speed: 2.5t/h Pass Schedule: Ellipse-round Hole Type System
Rolling Pass: As Needs Color: Optional
High Light:

2 roll mill

,

two high rolling mill

2-roller cold rolling machine for copper rod wire
I. Breif  information
The main rolling mill is the important part of the continuous cold rolling mill . It includes base, frame, reducer, motor etc. Each frame is driven by an independent motor.Copper rod rolling mill from Ф17mm to Ф8mm has two roller stands or three roller stands. They are sell well in Malaysia, Thailand, North Korea, Egypt, Algeria and other areas and countries for the machine’s beautiful appearance,stable operation and high-quality products.


II. Feature
Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.


III.Main Data

o. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
3 Output dia Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more



IV.Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device





V.Spare parts for 20mm-8mm forming units

No. Name

1 rollers

2 Roll shaft

3 guide

4 Expansion sleeve



VI.None scope of supply

No. Name Qty

1 Infrastructure

2 Power supply system

3 Wire and cable

4 Crane 1set

5 Emulsion pool 1pc

6 Emulsion filter 1

7 Emulsion pump 1

8 emulsion 1ton

9 Machine oil 5 barrel (180kg/pc)

10 pipeline

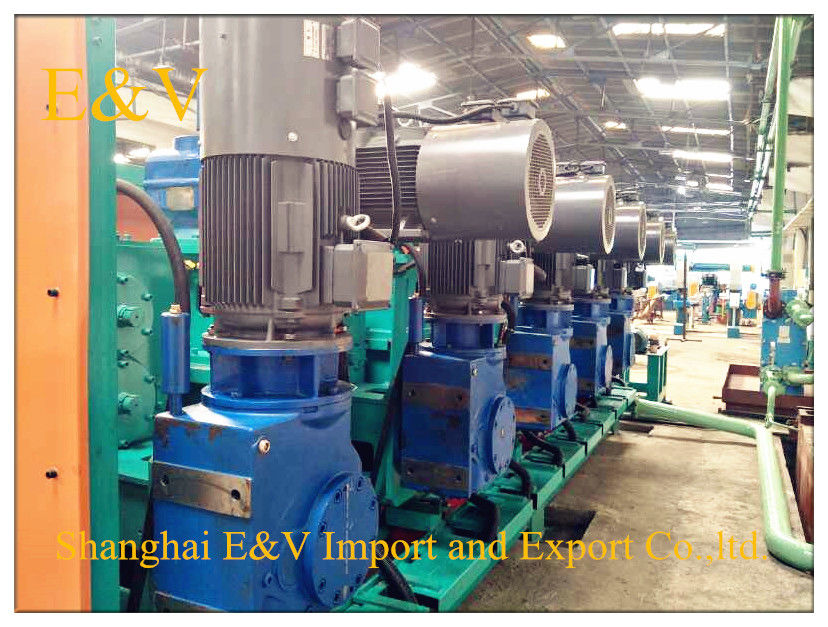

2 Roller Copper Rod Fat Bar Rolling Machines / Brass Fat Wire Roll Mill 0



55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm

2 Roller Copper Rod Fat Bar Rolling Machines / Brass Fat Wire Roll Mill 1
