180Kw 1.6M/S Copper Rod Cold Two Roll Mill Machine 12000×6000×2300 mm

China 180Kw 1.6M/S Copper Rod Cold Two Roll Mill Machine 12000×6000×2300 mm supplier

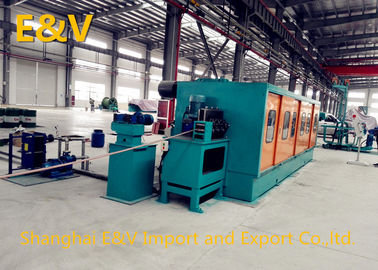

Large Image :  180Kw 1.6M/S Copper Rod Cold Two Roll Mill Machine 12000×6000×2300 mm

Product Details:

Place of Origin: China
Brand Name: EV
Model Number: JC-RM248(Ф17-Ф8)-8P-1C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 120days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Material: Copper Or Copper Alloy Color: Optional
Rolling Size: 17mm-8mm Delivery Time: 120days
Power: 180kw Size For Machine: 12000*6000*2300mm
Capacity: 2.5ton/hour Speed: 1.6m/s

180Kw 1.6M/S Copper Rod Cold Two Roll Mill Machine 12000×6000×2300 mm



Feature



1. The most important thing of mental process craft is forming system technology. It plays a more and more remarkable role in modern manufacture process, at the present, the rolling machine usually use big motor or huge and bulky multistage mechanical transmission mechanism. The mechanism depends on fixed gear and belt for transmission and limit the speed of rolling for process unit and transmission mechanism. This system can only make single material. For example, copper rod mill can not roll aluminum rod. Different section need special machine to make, present system can not process special ally machine and so on, meanwhile,big transmission cases drive some frames to work but excessive current will waste more resources. Transmission system in cases will happen to abrasion when it has ling time to work, in the process, it may have some problems for instability, push and pull to influence product quality. Besides, process device and mechanism are setting not reasonably. It may take a lot of time and increase worker’s diffculties to change the roller. We need to reform and innovate available equipment because it will not meet modem enterprise’s requirements, from the market survey and demand, we haven’t have this practical application.in order to meet the demand of market, we must develop a mental machine system with multifunctional and small cross section.



2. The unit is used for processing copper alloy rod for cold rolling. Copper alloy rod is rolled by cold rolling mill to improve mechanical property and remedy the limitation of casting. The producing capacity is 2.5tom per hour, it can roll the rod from 17mm to 8/6mm.



3. The machine designed by us is each stand driven by separate frequency motor or servo motor, so each stand still is sync after changing the rolling pass of and rotation speed. Process roller can change the pass, and each rotation speed can be set on touch screen.thus, under the premise of meeting stand’s strength,two-roller cold rolling mill can roll different size of copper rod. Different material also. Like 17mm-8mm,or 14.4-8mm,or 12.5-6.8mm or 8-4mm. Its same like Germany’s.



The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ17mm to Φ8mm.



Main Parameter



No. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
3 Output dia Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm



180Kw 1.6M/S Copper Rod Cold Two Roll Mill Machine 12000×6000×2300 mm
