Flexible Metal Rolling Mill 3.0M/S With Ellipse - Round Hole Type System

Flexible Metal Rolling Mill 3.0M/S With Ellipse - Round Hole Type System
Flexible Metal Rolling Mill 3.0M/S With Ellipse - Round Hole Type System

Large Image :  Flexible Metal Rolling Mill 3.0M/S With Ellipse - Round Hole Type System

Product Details:
Place of Origin: China
Brand Name: EV
Model Number: JC-RM248(copper strip)12P-1H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad export packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Color: Optional Rolling Size: Strip
Delivery Time: 120days Size For Machine: 12000*6000*2300mm
Capacity: 5ton/hour Speed: 3.0m/s
Weight: 20ton
High Light:

rolling mill machinery

,

2 high rolling mill

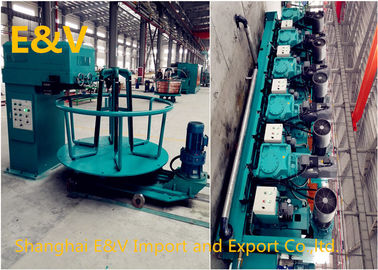

Flexible Metal Rolling Mill 3.0M/S With Ellipse - Round Hole Type System





The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.

   Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.



Main Parameter



No. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia copper strip
3 Output dia  copper strip
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm





some questions for this machine, maybe u are interested in



1. what’s the difference between the roll mill and drawing machine?



Roll mill can change the density of copper rod,but the drawing machine just drawing.



2. what’s advantage about roller of 2-roller roll mill?



2.1 the roller has two side to be used.

2.2 the roller can make 2 kind of size,such as one side 17-8,other side 8-3.

2.3 easy changed than the 3-roller roll mill
