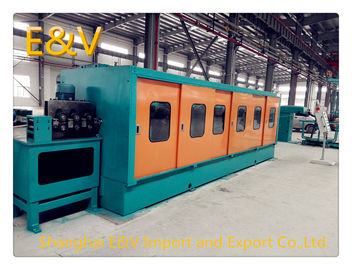

Two Roller Copper Rolling Mill 12000×6000×2300 mm with 2-16 Rolling pass
1. The machine designed by us is each stand driven by separate frequency motor or servo motor, so each stand still is sync after changing the rolling pass of and rotation speed. Process roller can change the pass, and each rotation speed can be set on touch screen.thus, under the premise of meeting stand’s strength,two-roller cold rolling mill can roll different size of copper rod. Different material also. Like 17mm-8mm,or 14.4-8mm,or 12.5-6.8mm or 8-4mm. Its same like Germany’s.
2. Our machine with advanced design concept. Machine designed adopts advanced technology and high quality material, West Germany plate appearance design, high efficiency than similar products; Stand mill is beautiful, efficient, durable power.
3. Electrical parts adopts famous brand. like, Mitisubishi Japan or Siemens Germany . Use high-speed communication control mode, save and reliable property, advanced technology, controlled by colors touch screen during production,show all figure clear.(such as pass setting, speed setting, length setting, roller in/out, real line speed, real roller rotation speed, running frequency motor, current, fault and content display,PLC-I/O display etc.) “Internet -things system” (optional) can save date of machine running(frequency motor current, frequency, line speed etc.),technology parameter,production records, can real-time display though LAN or internet, easy operation, high automatic.
The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products；Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.
|1||Model:||Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.|
|2||Input dia||Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.|
|3||Output dia||Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.|
|4||Outlet rod out of roundness||No more than 0.2mm after rolling, or more accurate|
|5||Rolling pass||2-16 or as each customer’s requirements|
|6||Rolling speed||Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.|
|7||Pass schedule||ellipse-round hole type system or triangular -round type system|
|8||total extend compression ratio||2-10, or as each customer’s requirements|
|9||each pass compression ratio||1.15～1.4(hole type can change)|
|11||Running mode||Each frame separate transmission speed controlled by frequency or AC servo|
|12||Operation mode||PLC control, touch screen display,can improve to DCS control or networking|
|13||type||2 high horizontal- vertical or 3 high positive triangle-inverted triangle|
|14||nominal roller dia||Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.|
|15||No. of frame||2-16 or more|
|16||Main motor||11kw-110kw AC frequency motor or AV servo motor for each|
|17||roller material||other imported material etc.|
|18||rolling mill size||
a complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m
|19||height of center||height from the ground 1230mm|
Layout drawing for reference
some questions for this machine, maybe u are interested in
1.What’s the feature of rolling mill?
Invented,designed and produced by our own company ,the rolling machine having many patents for invention on home and abroad,used by many company on global ,the high quality,good responds, has the following advantages:
1.1.Rolling mill’s driving motor belong to separate motor, each frame can be adjusted separately,and the speed of each rolling frame can be adjusted precisely,so that the pull-push phenomenon can be eliminated caused by uneven speed during rolling and the quality of rolling pieces can be improved.
1.2.Quickly change rollers and save equipment maintenance and repair time.
1.3.A set of machine can roll all kinds of section.
1.4.Roll all kinds of special materials,for example Magnesium copper,brass, Nickel-copper,Silver-copper alloys,Tungsten and molybdenum,Tantalum and niobium,etc.
1.5.oil supply and detected point by point, which makes lubrication system more reliable.
1.6.Reduce rolling energy consumption and manual consumption, and achieve energy conservation effect.
