|Material:||Copper Or Alloy||Color:||Optional|
|Rolling Size:||Copper Tube||Delivery Time:||120days|
|Power:||300kw||Size For Machine:||12000*6000*2300mm|

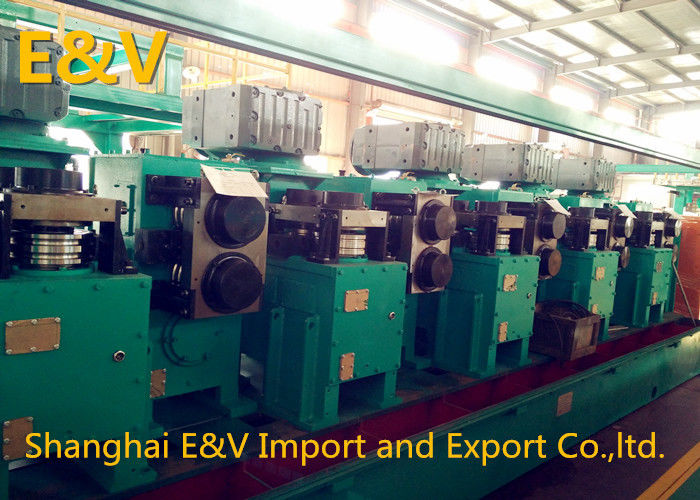

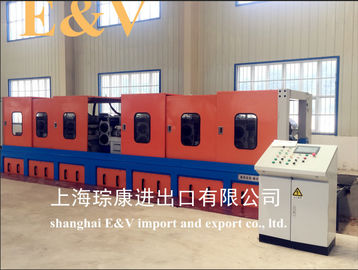

1.6M/S Copper Wire Rod Rolling Mill Machine Touch Screen Display Operation
1. The machine designed by us is each stand driven by separate frequency motor or servo motor, so each stand still is sync after changing the rolling pass of and rotation speed. Process roller can change the pass, and each rotation speed can be set on touch screen.thus, under the premise of meeting stand’s strength,two-roller cold rolling mill can roll different size of copper rod. Different material also. Like 17mm-8mm,or 14.4-8mm,or 12.5-6.8mm or 8-4mm. Its same like Germany’s.
2. The machine is for rolling. The rod after rolling can greatly improve mechanical property and remedy defect from casting. This speed can reach to 5m/s for this series.
3. Our machine with advanced design concept. Machine designed adopts advanced technology and high quality material, West Germany plate appearance design, high efficiency than similar products; Stand mill is beautiful, efficient, durable power.
The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products；Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.
|1||Model:||Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.|
|2||Input dia||copper tube|
|3||Output dia||copper tube|
|4||Outlet rod out of roundness||No more than 0.2mm after rolling, or more accurate|
|5||Rolling pass||2-16 or as each customer’s requirements|
|6||Rolling speed||Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.|
|7||Pass schedule||ellipse-round hole type system or triangular -round type system|
|8||total extend compression ratio||2-10, or as each customer’s requirements|
|9||each pass compression ratio||1.15～1.4(hole type can change)|
|11||Running mode||Each frame separate transmission speed controlled by frequency or AC servo|
|12||Operation mode||PLC control, touch screen display,can improve to DCS control or networking|
|13||type||2 high horizontal- vertical or 3 high positive triangle-inverted triangle|
|14||nominal roller dia||Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.|
|15||No. of frame||2-16 or more|
|16||Main motor||11kw-110kw AC frequency motor or AV servo motor for each|
|17||roller material||other imported material etc.|
|18||rolling mill size||
a complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m
|19||height of center||height from the ground 1230mm|
some questions for this machine, maybe u are interested in
1.what’s the main different between rolling mill and extrusion machine?
Rolling mill belong to cold process,extrusion machine belong to hot process.
2 .what about reducing machine and rolling machine?
It is a same machine,just different name.
3.How about the voltage of rolling machine ?
Standard Industry voltage
4.If the zinc rod can be processed by the 2-high roll mill or not ?
Yes,it is ok , zinc rod 2-high roll mill.
5.What’s the main device of roll mill?
