|Material:||Copper Or Copper Alloy||Color:||Optional|
|Rolling Size:||8mm-3mm||Delivery Time:||100days|
|Power:||200kw||Size For Machine:||12000*6000*2300mm|
two roll mill,
2 roll mill

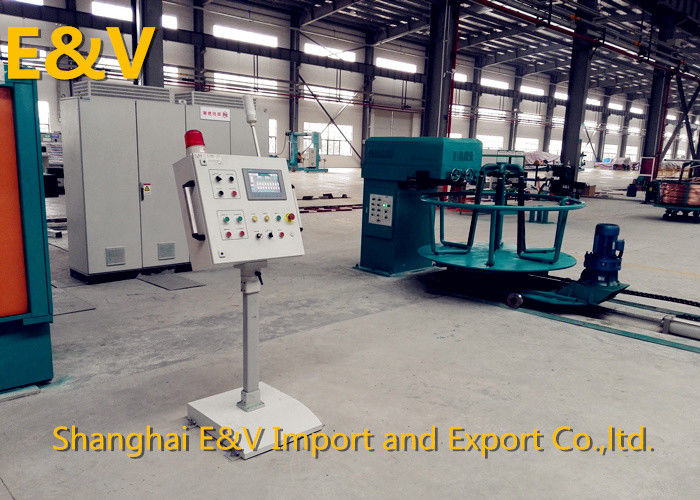

Copper Reducing Metal Rolling Mill 2.5 Ton / Hour Producing Capacity
1. The unit is used for processing copper alloy rod for cold rolling. Copper alloy rod is rolled by cold rolling mill to improve mechanical property and remedy the limitation of casting. The producing capacity is 2.5tom per hour, it can roll the rod from 17mm to 8/6mm.
2. The machine is for rolling. The rod after rolling can greatly improve mechanical property and remedy defect from casting. This speed can reach to 5m/s for this series.
3. Our machine with advanced design concept. Machine designed adopts advanced technology and high quality material, West Germany plate appearance design, high efficiency than similar products; Stand mill is beautiful, efficient, durable power.
The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products；Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.
|1||Model:||Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.|
|2||Input dia||Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.|
|3||Output dia||Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.|
|4||Outlet rod out of roundness||No more than 0.2mm after rolling, or more accurate|
|5||Rolling pass||2-16 or as each customer’s requirements|
|6||Rolling speed||Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.|
|7||Pass schedule||ellipse-round hole type system or triangular -round type system|
|8||total extend compression ratio||2-10, or as each customer’s requirements|
|9||each pass compression ratio||1.15～1.4(hole type can change)|
|11||Running mode||Each frame separate transmission speed controlled by frequency or AC servo|
|12||Operation mode||PLC control, touch screen display,can improve to DCS control or networking|
|13||type||2 high horizontal- vertical or 3 high positive triangle-inverted triangle|
|14||nominal roller dia||Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.|
|15||No. of frame||2-16 or more|
|16||Main motor||11kw-110kw AC frequency motor or AV servo motor for each|
|17||roller material||other imported material etc.|
|18||rolling mill size||
a complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m
|19||height of center||height from the ground 1230mm|
