Continuous Oxygen Upward Casting Machine 17mm 2-24 strand Qty

China Continuous Oxygen Upward Casting Machine 17mm 2-24 strand Qty supplier

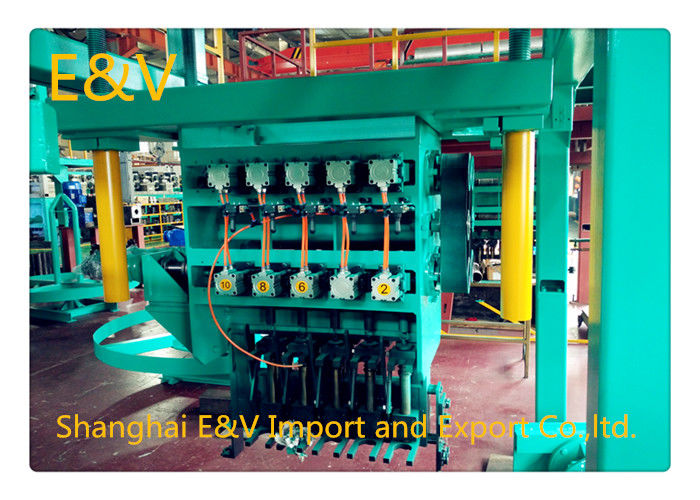

Large Image :  Continuous Oxygen Upward Casting Machine 17mm 2-24 strand Qty

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: SYJ1608-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Contact Now
Detailed Product Description
Color: Optional Yearly Capacity: 1000-12000mt
Function: Producing Copper Rod Strand Qty: 2-24
Product: 8mm Copper Rod Working Hour: 7920H
Usage: Cast

Continuous oxygen free copper producing machine

AMain Introduction:

Upcasting Copper Rod Manufacturing Machine produced by professional designers through indepentent design and research and gained the reputation both at home and abroad.The induction melting furnace melt the copper cathode into liquid, the liquid keeps off the air by charcoal or graphite flake in case of be oxidation.

NOTE: We can produce the up cast line according to your requirments

B.Technological process



Put copper cathode over the furnace by the lifting system for baking→Adjust the feeding speed according to the casting speed. Feed the copper cathode into the melting furnace for melting (charcoal to be used for avoiding oxidization) → copper liquid flows into the transition part (charcoal is still needed to avoid oxidization) → Copper liquid flows into the holding furnace → Copper liquid flows into the crystallizer to be copper rods → copper rods enter into traction device for upward movement → Go through the output frame →copper rods go through the distribution frame (to separate each rod) → copper rods go through the tension frame ( to control the take-up speed) → copper rods go through the take-up machine,for coiling → Next process



 C.The technical parameter :

No. Item Data
1 Model No SYJ(02-24)**(08-35)-I2/3
2 Annual capacity 1000-12000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands 2-24
6 Casting rod diameter: Ф8mm-Ф35mm
7 Upward casting speed 0~3000mm/min or 0-1500mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 260-2525kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method air clamping or manual clamping



D.Product Technical Standard

Density ~8.9kg/dm3
Tensile Strength over 170N/mm2
Elongation over 38%
Oxygen Content ≤10ppm
conductivity 100%-102IAS





E.Free After Service



1) Supply the design suggestion and layout plan for the clients workshop.

2) Supply the technical specification of the auxiliary facilities for the clients.

3) Supply the equipments operation training.

4) Supply the installation,start-up and commissioning service.



Continuous Oxygen Upward Casting Machine 17mm 2-24 strand Qty
