continuous casting machine for less than 10ppm copper rod, 8mm~30mm cable and wire



Using for cable wire, electrode posited copper and so on.



15000mt upward casting machine



The upcasting line is used to produce the 15000tons long and bright oxygen-free copper rod. This unit is also apply to produce brass rod, copper strip, copper tube and so on.That adopts energy-saving furnace, temperature control paperless recorder, Auto Alarm Function and other information management methods. And using four set of traction system to pull copper rods.



The Main Technology Parameter of 15000Continuous Casting Machine





Model SYJ24*(08-30)-I6
Raw Material Copper cathode or copper scrap
Annual capacity 15000 tons
Furnace structure 6-body furnace (Combined furnace)
Number of Servo motor four
Casting rod diameter Ф8mm~Ф30mm
Upward casting speed 0~3000mm/min
Annual working time 7920h
Liquid tracking precision ±2mm
coiling specification Ф700mm × Ф1500mm× 800mm
Copper melting power consumption <350kwh/ton
Take-up form automatic adjust
Take-up plate driven approach inverter motor, PLC control
Material feeding method whole piece of electrolytic copper cathode fed by electric hoist or auto feeding system
Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
Rod clamping method air clamping or manual clamping
Operation interface Large touch screen display and adjust

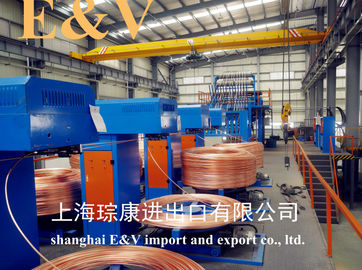

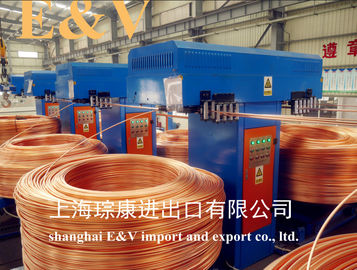

copper rod continuous casting producing line
