8mm -16mm 4000T Copper Rod Upward Continuous Casting Machine

China 8mm -16mm 4000T Copper Rod Upward Continuous Casting Machine supplier

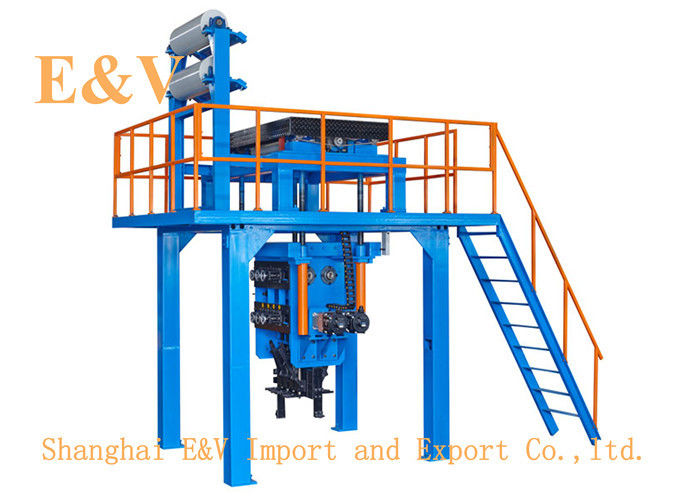

Large Image :  8mm -16mm 4000T Copper Rod Upward Continuous Casting Machine

Product Details:

Place of Origin: CHINA
Brand Name: E&V
Model Number: SYJ1008-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 60days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Machine: Continuous Casting Machine Function: Making Rod
Strand Dia: 8mm-16mm Color: Optional
Output Each Year: 4000t Casting Speed: 0-3000

8mm -16mm 4000T Copper Rod Upward Continuous Casting Machine



I, Introduction



The upward continuous casting (Upcast Upcasting)system is a new technology of producing oxygen-free copper rod, having high electric conductivity and low oxygen content, which is the perfect material for electric cable and wire, as well as other electronic and electric products.



II, Main data



No. Item Data
1 Model No SYJ1008-16-I3
2 Annual capacity 4000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands 8
6 Casting rod diameter: Ф8mm-Ф16mm
7 Upward casting speed 0~3000mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 760kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control



III,Our advantages



1. The paperless recorder is used and is connected to the manager’s computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased. (chose when the buyer need)



2. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.



3. Energy-saving furnace is used for the upcasting line, which is having a larger power for single inductor, better melting effect, and a longer life. It has won the related patent: ZL 2010.2 0214505.5, ZL 2010.2 0214501.7, ZL 2006.2 0105926.8 ZL 2008.2 0162263.2.



IV,Some questions for this machine, maybe u are interested in



1.what’s the difference between up-casting machine and horizontal machine?



different way to casting machine,up-casting machine making oxygen-free copper rod ,but horizontal machine making low oxygen copper rod.the copper rod’s color is different



2.Do we need to making the furnace again if the water jack is broken?



No,just to change it.



3.How long the work hour about the up-casting machine?



7920h



4.What’s the speed about the up-casting machine?



0-3000mm/min



8mm -16mm 4000T Copper Rod Upward Continuous Casting Machine





8mm -16mm 4000T Copper Rod Upward Continuous Casting Machine
