Output Dia Ф20mm Ф18mm Copper Rolling Mill Machine With Ellipse Round Hole Type System

China Output Dia Ф20mm Ф18mm Copper Rolling Mill Machine With Ellipse Round Hole Type System supplier

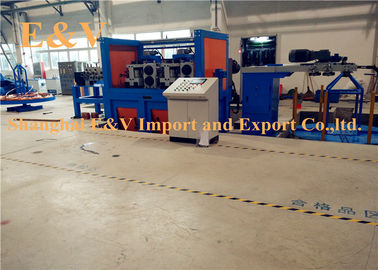

Large Image :  Output Dia Ф20mm Ф18mm Copper Rolling Mill Machine With Ellipse Round Hole Type System

Product Details:

Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф20-Ф8)-10P-C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Machine Type: Rolling Mill Pass: As Needs
Color: Optional Pass Schedule: Ellipse-round Hole Type System
Condition: New Function: Make Rod Thinner And Improve Quality

Low production costs copper alloy rod rolling mill / Copper Rolling Mill


I. Detail information of the machine

The unit is used for copper rod cold rolling. Invented,designed and produced by our own company ,the rolling machine having many patents for invention at home and abroad ,used by many company on global,high quality



II. Advantage

1.seperate motor

2.high quality

3.good reponds

4.roll diffient material

5.roll diffient size

6.Perfect service,timely customer response

7.reduce rolling manual consumption



III.Main Data

No. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
3 Output dia Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm



IV.Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device





V.Technical process

Check the device→Touch screen enters to the normal working screen→Open the oil pump

Open the emulsion pump

The increase the speed and turn into ← Rolling the copper rod ← Start the rolling mill
nomol production


VI.Why you should choose us
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
Our company is engaged in manufacturing metal casting machines,wire drawing machines,melting furnaces and extrusion machines. We are a large scale group with new technology, update skill, latest device and combining research, production and sales



Output Dia Ф20mm Ф18mm Copper Rolling Mill Machine With Ellipse Round Hole Type System





Output Dia Ф20mm Ф18mm Copper Rolling Mill Machine With Ellipse Round Hole Type System



55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
