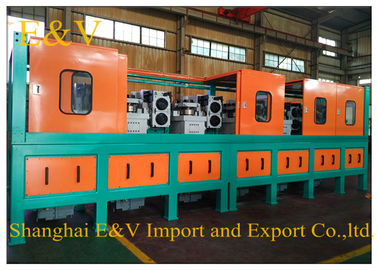

Copper Alloy Rod / Wire Metal Rolling Mill Cold Rolling Mill Max 1.6 M/S

Copper Alloy Rod / Wire Metal Rolling Mill Cold Rolling Mill Max 1.6 M/S
Copper Alloy Rod / Wire Metal Rolling Mill Cold Rolling Mill Max 1.6 M/S

Large Image :  Copper Alloy Rod / Wire Metal Rolling Mill Cold Rolling Mill Max 1.6 M/S

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф8-Ф4)-8P-1C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rolling Mill Input Dia: φ20mm;
Output Dia: φ8mm; Total Power: 200kw
Operation Method: PLC Color: Optional
High Light:

rolling mill machinery

,

rod rolling machine

saling copper alloy rods cold rolling mill/copper rod and wire cold rolling mill
I. major  information
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;


II. Advantage of 2 high cold rolling mill
Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.



III.Main Data

No. Item Data

1 Model 20mm-8mm cold rolling mil for oxygen free copper rod

2 Inlet dia 20.0mm

3 Outlet dia 8.0mm

4 Outlet rod out of roundness No more than 0.2mm

6 Rolling pass 10

7 Rolling speed Max 1.6 M/S

8 Pass schedule ellipse-round hole type system

9 total extend compression ratio 6.25

10 each pass compression ratio 1.15-1.3

11 Total installing power 200kw



IV.Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device






V.Spare parts for 20mm-8mm forming units

No. Name
1 rollers
2 Roll shaft
3 guide
4 Expansion sleeve


VI.Technical process
 1.check the device

 2.touch screen to enter into the normal working screen,

 3.open the oil pump

 4.open the emulsion pump

 5.rolling copper rod

 6.increase speed


Copper Alloy Rod / Wire Metal Rolling Mill Cold Rolling Mill Max 1.6 M/S 0

55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
Dear friends,
welcome to contact with us!

Copper Alloy Rod / Wire Metal Rolling Mill Cold Rolling Mill Max 1.6 M/S 1
