|Material:||Copper Or Copper Alloy||Rolling Size:||Φ14.4mm To Φ8mm|
|Power:||180kw||Size For Machine:||12000*6000*2300mm|
|Capacity:||2.5ton/hour||Function:||Make Rod Thickness|
Our service220kw 2.5 Ton / Hour 1.6m/s new design Copper Alloy Cold Rolling Mill

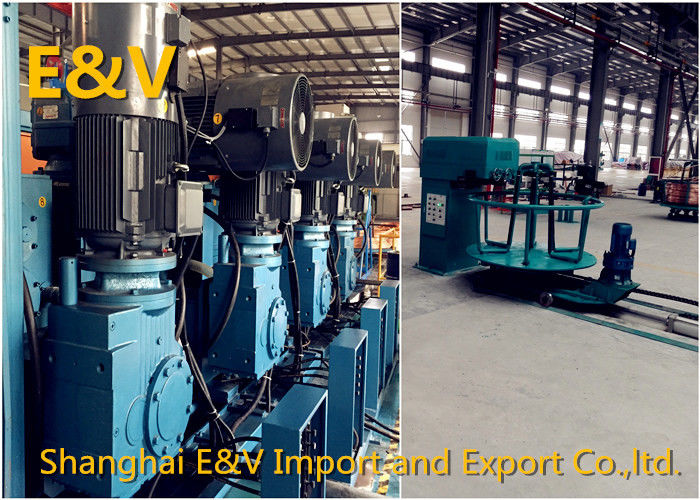

The unit is divided into 2-roller copper rolling mill and 3-roller copper rolling mill, is used in continuous rolling of copper and copper alloy rod. It's particularly suitable to be used in the rollig of the copper rod made from upward continuous casting machine with copper scrap as raw material,the process will improve the quality of the copper rod and make them more suitable for next process:drawing
It has high efficiency, energy saving, refining, and strengthen the copper rod crystal organization and etc.
|1||Model:||Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.|
|2||Input dia||Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.|
|3||Output dia||Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.|
|4||Outlet rod out of roundness||No more than 0.2mm after rolling, or more accurate|
|5||Rolling pass||2-16 or as each customer’s requirements|
|6||Rolling speed||Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.|
|7||Pass schedule||ellipse-round hole type system or triangular -round type system|
|8||total extend compression ratio||2-10, or as each customer’s requirements|
|9||each pass compression ratio||1.15～1.4(hole type can change)|
|11||Running mode||Each frame separate transmission speed controlled by frequency or AC servo|
|12||Operation mode||PLC control, touch screen display,can improve to DCS control or networking|
|13||type||2 high horizontal- vertical or 3 high positive triangle-inverted triangle|
|14||nominal roller dia||Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.|
|15||No. of frame||2-16 or more|
|16||Main motor||11kw-110kw AC frequency motor or AV servo motor for each|
|17||roller material||other imported material etc.|
|18||rolling mill size||
a complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m
|19||height of center||height from the ground 1230mm|
1.Before sale: We introduce you our machine by email or telephone and answer every questions about our machines.
If you want to have face-to face talk and examine the machine in our factory,we will schedule it and take care of your boarding in China,sush picking you up at airport and booking hotels for you.
2.After sale:We assit customs clearance of your country and send engineers to your factory for machine installation and commissioning.The gurantee period of machine is 12 months,so we gurantee machine quality and if any problem rises because of our machine quality,we are resposible for all fees for reparing.
1. Delivery time:90 working days after the complete receipt of the deposit.
