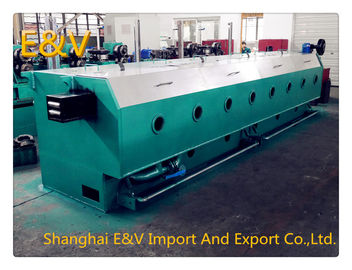

High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical

China High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical supplier
High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical supplier High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical supplier High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical supplier

Large Image :  High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: 9D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standred export packing
Delivery Time: 45 days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Color: Optional Machine Name: RBD/ Big Drawing Machine
Product Dia: 8mm Output Speed: 800m/min
Output Size: 3/26mm Feature: Efficient,high-quality

High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical





1. Brief of introduction

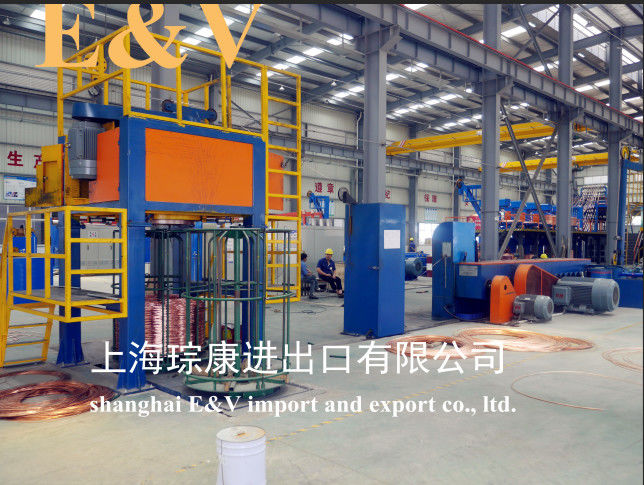

9D big drawing machine for copper wire is used for producing oxygen free or low round copper wire and the biggest input size is 8mm. Through nine processes to continuous drawing copper rod 8mm to copper wire 3mm-2.6mm, using automatic plate for paying off and automatic coiling.



2. Main parameter



NO. Item Parameter
1 model DL400-9D big drawing machine for copper wire
2 inlet dia Φ8mm
3 outlet dia Φ3mm~Φ2.6mm
4 Drawing die numbers 9
5 line speed (max) 800MPM
6 structure of machine weld
7 Drawing speed 2t/h
8 Area reduction rate of m/c 23.6%
9 capstan reduction rate of m/c 20%
10 capstan Tungsten carbide
11 capstan dia (max) Φ400
12 Fix speed capstan dia (mm) Φ400
13 Total power 160kw,DC motor
14 coiling power 11kw /15kw three phase AC frequency motor
15 the way of controlling speed AC control +frequency control
16 transmission way Grinding gear(20CrMnTi Sophisticated helical gear )
17 Pay off way Overhead
18 Cooling way Fully immersed
19 service voltage Three phase 380V(AC),50Hz



High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical

High Efficient RBD Copper Wire Drawing Machine 800MPM For Electrical
