4000T 16mm copper rod upcasting machine with 300 type furnace

China 4000T 16mm  copper rod upcasting machine with 300 type furnace supplier

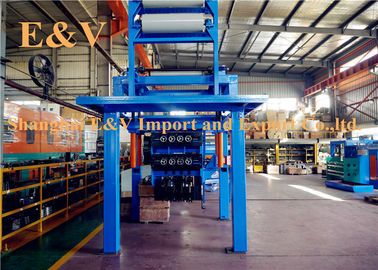

Large Image :  4000T 16mm copper rod upcasting machine with 300 type furnace

Product Details:

Place of Origin: CHINA
Brand Name: E&V
Model Number: SYJ1008-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 60days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Machine: Continuous Casting Machine Function: Making Rod
Strand Dia: 16mm Color: Optional
Output Each Year: 4000t Casting Speed: 0-3000

I, Introduction

Shanghai E&V Brand continuous casting machine is produced by professtional designers through indepentent design and research and gained the reputation both at home and abroad.



II, Main data

No. Item Data
1 Model No SYJ1016-I3
2 Annual capacity 5000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands8 8
6 Casting rod diameter: 16mm
7 Upward casting speed 0~3000mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 760kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method manual clamping



III,Our advantages

1.Best quality

2.Lowest Price

3.Low consumption,power saving

4.Low production costs

5.Low labor costs

6.Latest design. New Configuration

7.Perfect service,timely customer response

8.No pollution



IV,Unit composition

1.Induction furnace

2.continuous casting machine

3.rack of directive wheels

4.tension device

5.two-stroke coiler

6.cooling system

7.electric system

8.feeding system

9.measure temperature system

4000T 16mm  copper rod upcasting machine with 300 type furnace





4000T 16mm  copper rod upcasting machine with 300 type furnace
