2.5 Ton / Hour Multi Groove Copper Alloy Cold Rolling Mill Φ14.4mm - Φ8mm

Good services and efficient works,I'd like to cooperation with them, it's my best eyes in china.

—— Raymond

Your goods are prefect in quality compared with those of other manufacturers.

—— Mr. Anil

I'm Online Chat Now

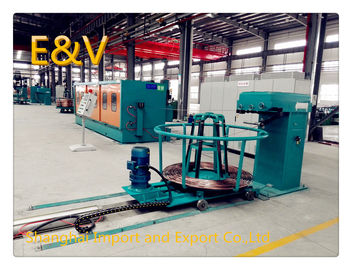

2.5 Ton / Hour Multi Groove Copper Alloy Cold Rolling Mill Φ14.4mm - Φ8mm

2.5 Ton / Hour Multi Groove Copper Alloy Cold Rolling Mill Φ14.4mm - Φ8mm
2.5 Ton / Hour Multi Groove Copper Alloy Cold Rolling Mill Φ14.4mm - Φ8mm

Large Image :  2.5 Ton / Hour Multi Groove Copper Alloy Cold Rolling Mill Φ14.4mm - Φ8mm

Product Details:
Place of Origin: China
Brand Name: EV
Model Number: JC-RM248(Ф20-Ф8)-10P-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad export packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Material: Copper Or Copper Alloy Rolling Size: Φ14.4mm To Φ8mm
Power: 180kw Size For Machine: 12000*6000*2300mm
Capacity: 2.5ton/hour Speed: 1.6m/s
High Light:

rod rolling machine

,

2 high rolling mill

2.5 Ton / Hour Multi Groove Copper Alloy Cold Rolling Mill Φ14.4mm - Φ8mm



The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.





Main Parameter



No. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
3 Output dia Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm





Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.



some questions maybe you are interested in



1. What’s the system about Two-high mill and 3 roll mill?



Two-high mill pass system for: ellipse-round hole type system ; Three roll mill pass system : triangle -round system



2. The roundness of outlet rod is very big by the rolling mill,is it right?


NO, no more than 2mm.



3. Is it very difficult to operate the rolling machine ?


No.just need one person and the machine is very easy to be operated.
