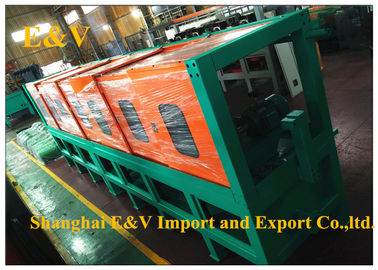

Metal Rolling Mill 16mm - 6.8mm Rolling Size , brass Rolling Mill with separate motor

Metal Rolling Mill 16mm - 6.8mm Rolling Size , brass Rolling Mill with separate motor
Metal Rolling Mill 16mm - 6.8mm Rolling Size , brass Rolling Mill with separate motor

Large Image :  Metal Rolling Mill 16mm - 6.8mm Rolling Size , brass Rolling Mill with separate motor

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф17-Ф6.8)-8P-1C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rolling Mill Rolling Size: 17-6.8mm
Rolling Speed: 2.5t/h Total Power: 300kw
Rolling Pass: 8 Color: Optional
High Light:

rolling mill machinery

,

rod rolling machine

16mm-6.8mm Brass Copper Rod Cold Continuous Rolling Mill
I. Detail information
The unit is used for copper rod cold rolling. Invented,designed and produced by our own company ,the rolling machine having many patents for invention at home and abroad ,used by many company on global,high quality .Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ17mm to Φ6.8mm.

II. Advantage
i) Stable product quality;
ii) Low energy consumption;
iii) Roll all kind of section
iv)Separate motor
v) Quickly change rollers
vi) Reasonable price

III.Main parameter

No.itemParameter
1Model:Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2Input diaФ55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
3Output diaФ20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
4Outlet rod out of roundnessNo more than 0.2mm after rolling, or more accurate
5Rolling pass2-16 or as each customer’s requirements
6Rolling speedMax 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7Pass scheduleellipse-round hole type system or triangular -round type system
8total extend compression ratio2-10, or as each customer’s requirements
9each pass compression ratio1.15~1.4(hole type can change)
10Total power100kw~500kw
11Running modeEach frame separate transmission speed controlled by frequency or AC servo
12Operation modePLC control, touch screen display,can improve to DCS control or networking
13type2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14nominal roller diaФ200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15No. of frame2-16 or more
16Main motor11kw-110kw AC frequency motor or AV servo motor for each
17roller materialother imported material etc.
18rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m

19height of centerheight from the ground 1230mm



IV. Technical process
Check the device→Touch screen enters to the normal working screen→Open the oil pump
                                                                                                                   ↓
                                                                                                    Open the emulsion pump
                                                                                                                    ↓
The increase the speed and turn into ←  Rolling the copper rod  ←      Start the rolling mill
nomol production

V.Main component
1. Rolling mill base (including frame, reducer, motor etc)
2. Guide system
3. Pay-off frame
4. coiling take-up system
5. Lubrication system
6. Emulsion system
7. Electronic control system
8.straightening device



Metal Rolling Mill 16mm - 6.8mm Rolling Size , brass Rolling Mill with separate motor 0


55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
