| Machine Type: | Rolling Mill | Rolling Size: | 17-8mm |
|---|---|---|---|
| Rolling Speed: | 2.5t/h | Total Power: | 200kw |
| Rolling Pass: | As Needs | Color: | Optional |
| High Light: | rolling mill machinery,rod rolling machine |
||

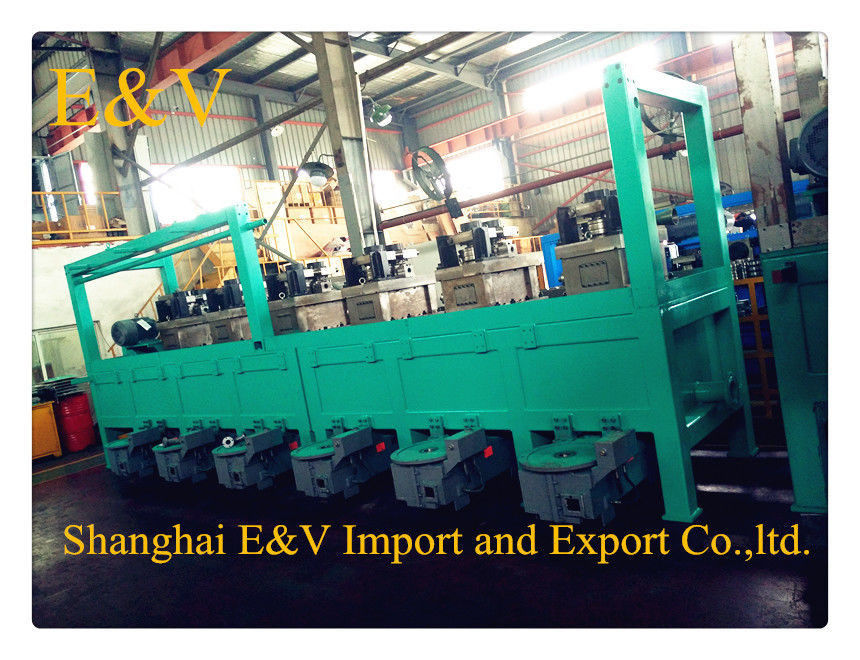

17mm-8mm Nickel- copper alloy rod Continuous Rolling Mill
I. Detail information
The unit is used for copper rod cold rolling. Invented,designed and produced by our own company ,the rolling machine having many patents for invention at home and abroad ,used by many company on global,high quality
II. Feature
1. Rolling mill's drving motor belongs to separte motor each frame can be adjusted precisely,the pull-push phonomenon can be eliminated cased by uneven speed during rolling.
2. Quickly change rollers to reduce equipment maintenance and repair time
3. A set of machine can rollers to reduce equipment maintenance and repair time.
4. All kinds of special materitals can be rolled
5. oil supply and detected point by point,which makes lubrication system more reliable.
6. Reduce rolling energy consumption and manual consumption.
III.Main parameter
| No. | item | Parameter |
| 1 | Model: | Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc. |
| 2 | Input dia | Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc. |
| 3 | Output dia | Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc. |
| 4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
| 5 | Rolling pass | 2-16 or as each customer’s requirements |
| 6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling. |
| 7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
| 8 | total extend compression ratio | 2-10, or as each customer’s requirements |
| 9 | each pass compression ratio | 1.15～1.4(hole type can change) |
| 10 | Total power | 100kw～500kw |
| 11 | Running mode | Each frame separate transmission speed controlled by frequency or AC servo |
| 12 | Operation mode | PLC control, touch screen display,can improve to DCS control or networking |
| 13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted triangle |
| 14 | nominal roller dia | Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc. |
| 15 | No. of frame | 2-16 or more |
| 16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
| 17 | roller material | other imported material etc. |
| 18 | rolling mill size | a complete production line: length 18m *width 6 m*height 2.5m |
| 19 | height of center | height from the ground 1230mm |
IV. Technical process
Check the device→Touch screen enters to the normal working screen→Open the oil pump
↓
Open the emulsion pump
↓
The increase the speed and turn into ← Rolling the copper rod ← Start the rolling mill
nomol production
V. Installation
1. The seller will send engineers to the buyer's site to direct the installation and test run. The buyer should prepare the installation site including, but not limited to, hoisting apparatus, labor power, tools and civil construction, etc. The buyer is responsible for the civil construction and arrange the accommodation for the seller's engineers.
55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm
20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
