| Material: | Copper Or Copper Alloy | Color: | Optional |
|---|---|---|---|
| Rolling Size: | 20mm-8mm | Power: | 180kw |
| Capacity: | 2.5ton/hour | Speed: | 1.6m/s |
| High Light: | rod rolling machine,2 high rolling mill |
||

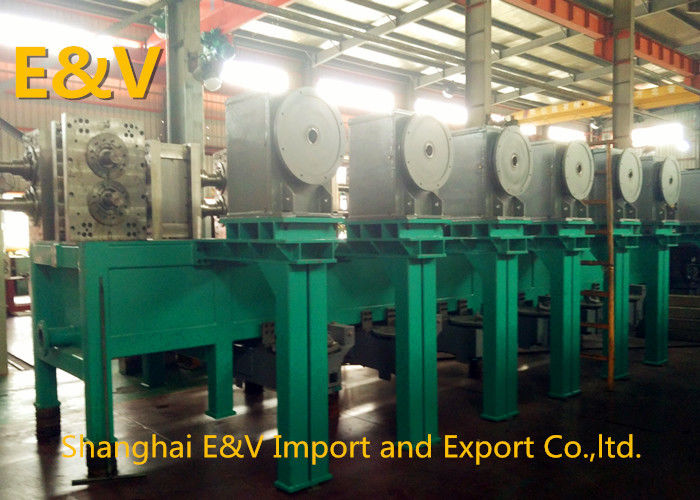

Tungsten Molybdenum Rod Rolling Machine / 180Kw Various Steel Rolling Mill
Feature
1. Our machine with advanced design concept. Machine designed adopts advanced technology and high quality material, West Germany plate appearance design, high efficiency than similar products; Stand mill is beautiful, efficient, durable power.]
2. The difficult of solving these problems is :how to make sure each stand is sync when roll different material and different hole size.
3.Electrical parts adopts famous brand. like, Mitisubishi Japan or Siemens Germany . Use high-speed communication control mode, save and reliable property, advanced technology, controlled by colors touch screen during production,show all figure clear.(such as pass setting, speed setting, length setting, roller in/out, real line speed, real roller rotation speed, running frequency motor, current, fault and content display,PLC-I/O display etc.) “Internet -things system” (optional) can save date of machine running(frequency motor current, frequency, line speed etc.),technology parameter,production records, can real-time display though LAN or internet, easy operation, high automatic.
The unit is used for tungsten molybdenum cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ30mm to Φ18mm.
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products；Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frametungsten molybdenum rolling mill is beautiful, efficient and durable.
Main Parameter
| No. | item | Parameter |
| 1 | Model: | tungsten molybdenum / other steel |
| 2 | Input dia | Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc. |
| 3 | Output dia | Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc. |
| 4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
| 5 | Rolling pass | 2-16 or as each customer’s requirements |
| 6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling. |
| 7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
| 8 | total extend compression ratio | 2-10, or as each customer’s requirements |
| 9 | each pass compression ratio | 1.15～1.4(hole type can change) |
| 10 | Total power | 100kw～500kw |
| 11 | Running mode | Each frame separate transmission speed controlled by frequency or AC servo |
| 12 | Operation mode | PLC control, touch screen display,can improve to DCS control or networking |
| 13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted triangle |
| 14 | nominal roller dia | Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc. |
| 15 | No. of frame | 2-16 or more |
| 16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
| 17 | roller material | other imported material etc. |
| 18 | rolling mill size |
a complete production line: length 18m *width 6 m*height 2.5m Main machine : length 7.6m*width 2.3m *height 2m |
| 19 | height of center | height from the ground 1230mm |
