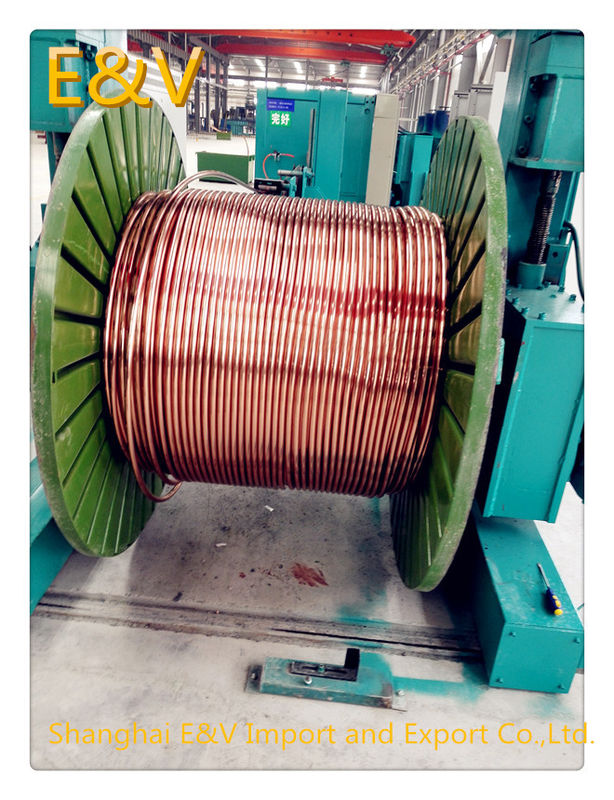

Metal Rolling Mill Two Plate - Take Up Machine With Ф1500mm Dia Looping

1. Coiling take-up machine

1.1  This machine consists of draught gear and take-up device, meets the characteristics of taking-up enclosure and requirements of constant taking-up speed. As the rotate speed must be steplessly adjusted within certain area, the AC inverter motor is adopted, and connected with rolling motor. The traction

power is from the AC inverter motor, and goes through the drive shaft to drive the coiling basket.

1.2 scope of application:Ф8.0mm

1.3 max dia of looping:Ф1500mm

1.4 max pulling speed:3m/s

1.5 max weight of looping:5ton

1.6 traction electric motor:power 5..5kw,can speed regulation and linkage with rolling mill

1.7 coiling electric motor:power 4kw, can speed regulation and linkage with rolling mill
