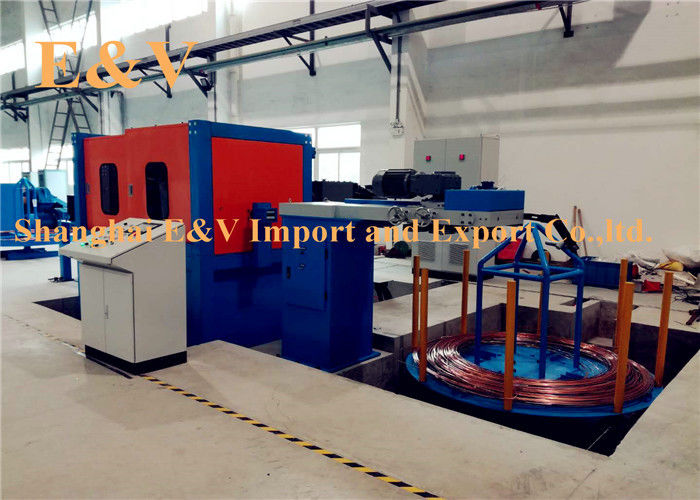

4 frame adjustable copper rod rolling machine
I. Detail information of the machine
4 frame adjustable copper rod rolling machine is used in continuous rolling of copper and copper alloy rod. The producing capacity is 2.5ton / hour
It's particularly suitable to be used in the rollig of the copper rod made from upward continuous casting machine with copper scrap as raw material,the process will improve the quality of the copper rod and make them more suitable for next process:drawing
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products
II. Advantage
1.seperate motor
2.high quality
3.good reponds
4.roll diffient material
5.roll diffient size
6.reduce rolling energy consumption
7.reduce rolling manual consumption
III.Main Data
| No. | item | Parameter |
| 1 | Model: | Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc. |
| 2 | Input dia | Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc. |
| 3 | Output dia | Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc. |
| 4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
| 5 | Rolling pass | 2-16 or as each customer’s requirements |
| 6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling. |
| 7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
| 8 | total extend compression ratio | 2-10, or as each customer’s requirements |
| 9 | each pass compression ratio | 1.15～1.4(hole type can change) |
| 10 | Total power | 100kw～500kw |
| 11 | Running mode | Each frame separate transmission speed controlled by frequency or AC servo |
| 12 | Operation mode | PLC control, touch screen display,can improve to DCS control or networking |
| 13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted triangle |
| 14 | nominal roller dia | Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc. |
| 15 | No. of frame | 2-16 or more |
| 16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
| 17 | roller material | other imported material etc. |
| 18 | rolling mill size |
a complete production line: length 18m *width 6 m*height 2.5m Main machine : length 7.6m*width 2.3m *height 2m |
| 19 | height of center | height from the ground 1230mm |
IV.Main component
1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device
V.Technical process
1. check the device to see if it works normal
2.after ensuring the normal condition of the equipment and safety operation, turn on the power supply; wait for the console touch screen to enter into the normal working screen,
3. open the oil pump. After the oil pump starts working, lubricating oil flows into the 2 high motive power frame. for a moment, through the transparent oil return pipe the lubricating oil can be seen to come out from the oil return hole of the motive power frame.
4. open the rolling mill operation ( as well as forward and reverse); and then open the emulsion pump.
5.ll the copper rod; the rolling speed can not be too fast at the beginning of rolling copper rod, but it can be speed up to normal produce when copper rod comes out from rolling mill and penetrates into take-up machine and coil basket. after penetration take up and looping basket 6. increase speed. turn into normal production.
7.turn off the rolling mill(take-up machine),emulsion pump,oil pump,main power in order.
VI.Why you should choose us
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
