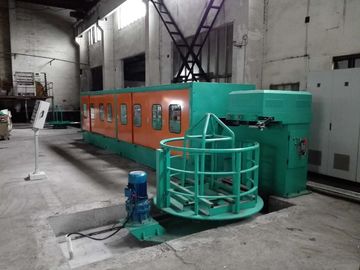

3.0m/s 17-8mm Large Capacity Copper Rolling Mill Horizontal Bead Mill

3.0m/s 17-8mm Large Capacity Copper Rolling Mill Horizontal Bead Mill
3.0m/s 17-8mm Large Capacity Copper Rolling Mill Horizontal Bead Mill

Large Image :  3.0m/s 17-8mm Large Capacity Copper Rolling Mill Horizontal Bead Mill

Product Details:
Place of Origin: China
Brand Name: EV
Model Number: JC-RM200(Ф8-Ф3)10P-1C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad export packing
Delivery Time: 100days
Supply Ability: 1set per month
Detailed Product Description
Material: Copper Or Copper Alloy Color: Optional
Rolling Size: 17-8mm Delivery Time: 100days
Power: 200kw Size For Machine: 12000*6000*2300mm
Capacity: 5ton/hour Speed: 3.0m/s
Weight: 20ton
High Light:

rolling mill equipment

,

roll mill machine

3.0m/s 17-8mm Large Capacity Copper Rolling Mill Horizontal Bead Mill



Feature



1. The difficult of solving these problems is :how to make sure each stand is sync when roll different material and different hole size.



2. The machine is for rolling. The rod after rolling can greatly improve mechanical property and remedy defect from casting. This speed can reach to 5m/s for this series.



3. Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.

E.g. The common rolling specification is Φ17mm to Φ8mm and Φ20mm to Φ8mm. But when the shape of the pass and the gear ratio are changed, this machine can also roll Φ12.5mm copper rod to Φ6.8mm, or Φ8mm to Φ4mm.



   Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.



Main Parameter



No. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
3 Output dia Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm





The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.



some questions for this machine, maybe u are interested in



1. What’s the feature of rolling mill?


Invented,designed and produced by our own company ,the rolling machine having many patents for invention on home and abroad,used by many company on global ,the high quality,good responds, has the following advantages:


1.1. Rolling mill’s driving motor belong to separate motor, each frame can be adjusted separately,and the speed of each rolling frame can be adjusted precisely,so that the pull-push phenomenon can be eliminated caused by uneven speed during rolling and the quality of rolling pieces can be improved.


1.2. A set of machine can roll all kinds of section.


1.3. Roll all kinds of special materials,for example Magnesium copper,brass, Nickel-copper,Silver-copper alloys,Tungsten and molybdenum,Tantalum and niobium,etc.



1.4. Reduce rolling energy consumption and manual consumption, and achieve energy conservation effect.
