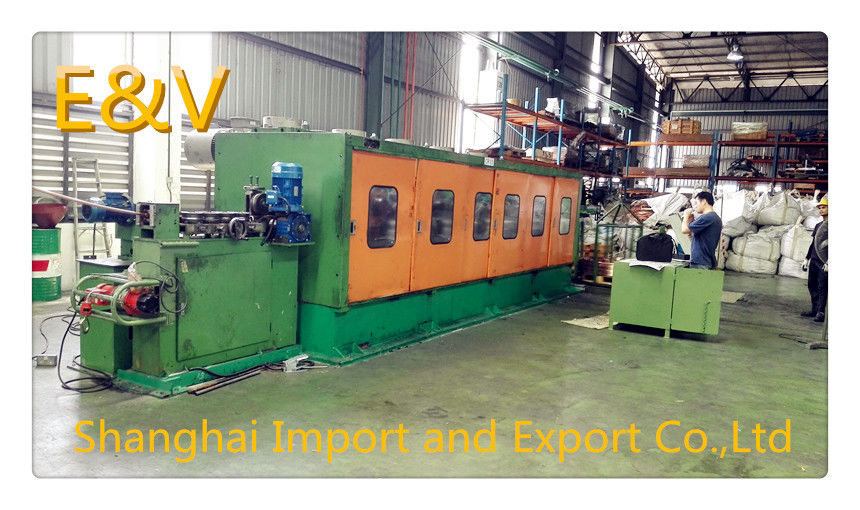

300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling

300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling
300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling

Large Image :  300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling

Product Details:
Place of Origin: China
Brand Name: EV
Model Number: JC-RM248(copper strip)12P-1H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad export packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Material: Copper Or Alloy Color: Optional
Rolling Size: Strip Delivery Time: 120days
Power: 300kw Size For Machine: 12000*6000*2300mm
Capacity: 5ton/hour Speed: 3.0m/s
Weight: 20ton
High Light:

copper rod mill

,

roll mill machine

300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling



Feature



1. The machine designed by us is each stand driven by separate frequency motor or servo motor, so each stand still is sync after changing the rolling pass of and rotation speed. Process roller can change the pass, and each rotation speed can be set on touch screen.thus, under the premise of meeting stand’s strength,two-roller cold rolling mill can roll different size of copper rod. Different material also. Like 17mm-8mm,or 14.4-8mm,or 12.5-6.8mm or 8-4mm. Its same like Germany’s.



2. Electrical parts adopts famous brand. like, Mitisubishi Japan or Siemens Germany . Use high-speed communication control mode, save and reliable property, advanced technology, controlled by colors touch screen during production,show all figure clear.(such as pass setting, speed setting, length setting, roller in/out, real line speed, real roller rotation speed, running frequency motor, current, fault and content display,PLC-I/O display etc.) “Internet -things system” (optional) can save date of machine running(frequency motor current, frequency, line speed etc.),technology parameter,production records, can real-time display though LAN or internet, easy operation, high automatic.



3. Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.

E.g. The common rolling specification is Φ17mm to Φ8mm and Φ20mm to Φ8mm. But when the shape of the pass and the gear ratio are changed, this machine can also roll Φ12.5mm copper rod to Φ6.8mm, or Φ8mm to Φ4mm.



The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ14.4mm to Φ8mm.

   Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.



Main Parameter



No. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia copper strip
3 Output dia  copper strip
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm



300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling 0

some questions for this machine, maybe u are interested in



1.what’s the difference between the roll mill and drawing machine?



Roll mill can change the density of copper rod,but the drawing machine just drawing.



2.what’s advantage about roller of 2-roller roll mill?



2.1 the roller has two side to be used.

2.2 the roller can make 2 kind of size,such as one side 17-8,other side 8-3.

2.3 easy changed than the 3-roller roll mill



300Kw Flexible 2 High Motive Power Frame Copper Rod Mill For Rolling 1
