|Machine Type:||Rolling Mill||Input Dia:||φ17mm;|
|Output Dia:||φ8mm;||Total Power:||180kw|
rolling mill machinery,
rod rolling machine

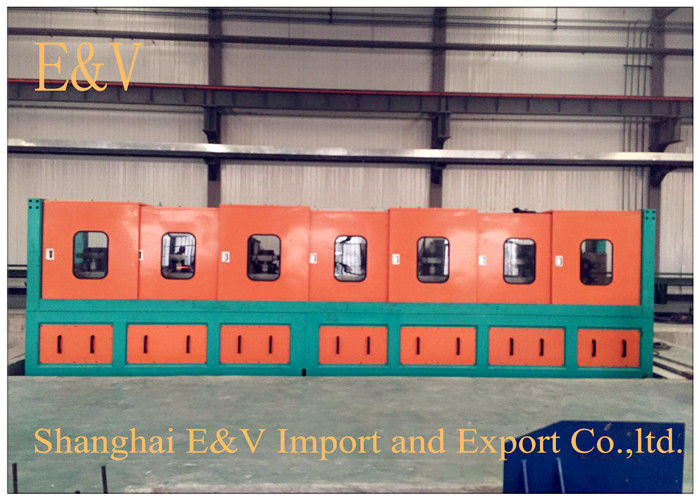

180kw 1.6m/s Copper Rod Continuous Rolling Mill with AC frequency motor
I. major information
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products；2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.The producing capacity is 2.5ton
1) good quality;
2) Low energy consumption;
3) Roll all kind of section
5) Quickly change rollers
6) Reasonable price
1 main rolling mill
The main rolling mill is the important part of the continuous cold rolling mill . It includes base, frame, reducer, motor etc. Each frame is driven by an independent motor. All the basic rolling process is finished on the main rolling mill, and the number of the frames is different according to different rolling size.
2 guide system
each pass has entry and exit guide, odd frame of entry guide glides to lead in, and even frame rolls to lead in.
guide material : GCr15
guide hardness: HRC55-58
3 pay off
max load capacity :3t
4 Coiling take-up machine
This machine consists of draught gear and take-up device, meets the characteristics of taking-up enclosure and requirements of constant taking-up speed.
5 Oil lubrication system
oil tank capacity: 1m³
6 Emulsion system
In order to improve the surface quality of the cold rolling copper rod, emulsion cool and lubricate the roller , copper rod and guide device in the rolling process.
7 electrical system
The electrical system includes the power system and the controlling system.
8 feeding and straightening device
The feeding and straightening device is in front of the main rolling mill, and it is used to straighten the rods so that it can feed the rod easier.
V.None scope of supply
|2||Power supply system|
|3||Wire and cable|
VI.Quality Warranty Period
The seller guarantees that the equipment performance complies with the requirements of the contract. The guarantee period of the mechanical parts of the equipment is 12 months, calculated from the 31st day since the BL date . (The guarantee period of the electrical parts is 6 months from the delivery date written on the contract; wearing parts are not included in the guarantee period.)
55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm
20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
