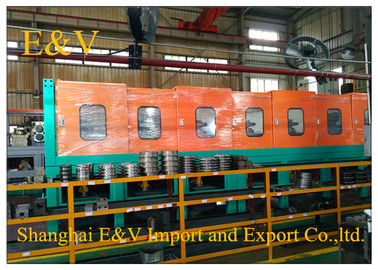

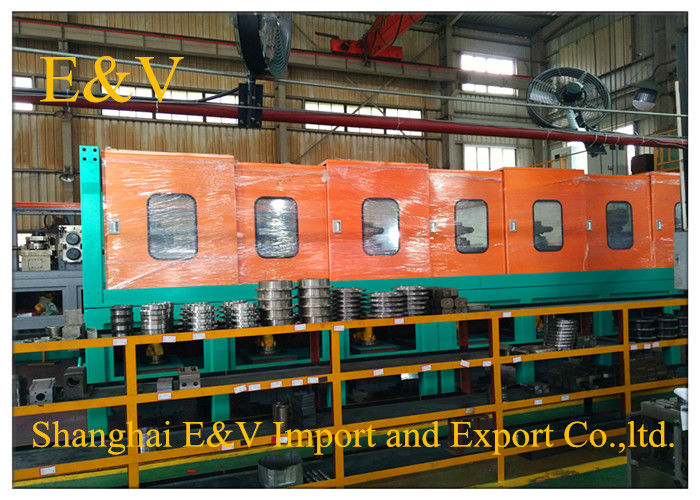

Aluminum rod rolling mill
I. major information
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.
II. Advantage
1) good quality;
2) Low energy consumption;
3) Roll all kind of section
4)Separate motor
5) Quickly change rollers
6) Reasonable price
7)Plc control
III.Main parameter
No. | item | Parameter |
1 | Model: |
Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill, copper / aluminum continuous casting and rolling etc. |
2 | Input dia |
55mm,35mm,25mm,20mm,17mm, 16mm,14.4mm,12.5mm,8mm etc. |
3 | Output dia |
20mm,18mm,17mm,8mm,6mm, 5mm,4mm,3 mm etc. |
4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
5 | Rolling pass | 2-16 or as each customer’s requirements |
6 | Rolling speed |
Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling. |
7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
8 | total extend compression ratio | 2-10, or as each customer’s requirements |
9 | each pass compression ratio | 1.15~1.4(hole type can change) |
10 | Total power | 100kw~500kw |
11 | Running mode |
Each frame separate transmission speed controlled by frequency or AC servo |
12 | Operation mode |
PLC control, touch screen display, can improve to DCS control or networking |
13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted triangle |
14 | nominal roller dia |
200mm(double-groove/multi-groove),248mm(double-groove/multi-groove), 264mm,300mm,370mm,400mm etc. |
15 | No. of frame | 2-16 or more |
16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
17 | roller material | other imported material etc. |
18 | rolling mill size | a complete production line: length 18m *width 6 m*height 2.5m Main machine : length 7.6m*width2.3m *height 2m |
19 | height of center | height from the ground 1230mm |
IV.Main component
1 main rolling mill
The main rolling mill is the important part of the continuous cold rolling mill . It includes base, frame, reducer, motor etc.
2 guide system
Each pass has entry and exit guide, odd frame of entry guide glides to lead in, and even frame rolls to lead in.
3 pay off
max load capacity :3t
4 Coiling take-up machine
This machine consists of draught gear and take-up device, meets the characteristics of taking-up enclosure and requirements of constant taking-up speed.
5 Oil lubrication system
oil tank capacity: 1m³
6 Emulsion system
In order to improve the surface quality of the cold rolling copper rod, emulsion cool and lubricate the roller , copper rod and guide device in the rolling process.
7 electrical system
The electrical system includes the power system and the controlling system.
8 feeding and straightening device
The feeding and straightening device is in front of the main rolling mill, and it is used to straighten the rods so that it can feed the rod easier.
V.None scope of supply
No. | Name |
1 | Infrastructure |
2 | Power supply system |
3 | Wire and cable |
4 | Crane |
5 | Emulsion pool |
6 | Emulsion filter |
7 | Emulsion pump |
8 | emulsion |
9 | Machine oil |
10 | pipeline |
VI.Terms Of Payment
1. Thirty percent (30%) earnest money of the total price stipulated in the contract should be paid
within 7 working days since the day both parties signed or stamped on the contract. the contract
will take effect on the day all the earnest money is received.
2. Seventy percent (70%) of the total price stipulated in the contract should be paid by T/T before
shipment. The shipment will be arranged when the payment is received.
3.All payments should be paid by T/T or bank draft to seller 's bank account.
