| Machine: | Continuous Casting Machine | Warranty: | One Year |
|---|---|---|---|
| Strand Dia: | 8~35 | Color: | Optional |
| Output Each Year: | 1000t-12000t | Traction Pitch: | 1-3mm+adjustable |
| High Light: | continuous casting machines,Vertical Casting Machine |
||

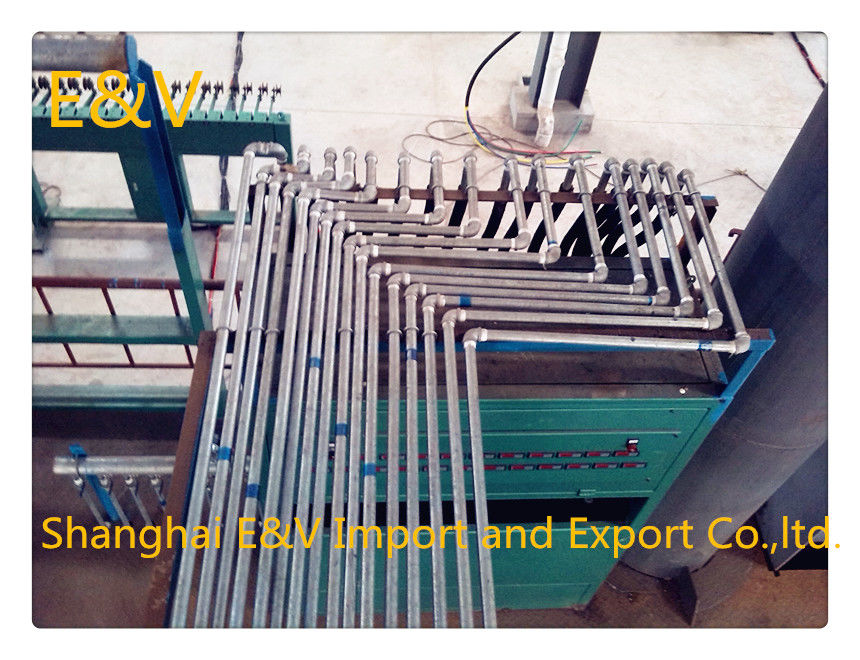

I.Main Introduction
The SYJ series copper rod continuous casting line adopts the upward method continuous castingprocess.On the basis of absorbing the advantage cooper process technical and technology from foreign companies,we have achieve great achievement in upward continuous casting copper rod.
II.Main yearly capacity
| Model | Annual capacity(tpyr) | Casting Strands Qty | Rod Dia(mm) |
| SYJ02017-I2 | 1000 | 2 | 8-35 |
| SYJ04017-I2 | 2000 | 4 | 8-35 |
| SYJ06017-I3 | 3000 | 6 | 8-35 |
| SYJ010017-I3 | 5000 | 10 | 8-35 |
| SYJ012017-I3 | 6000 | 12 | 8-35 |
| SYJ016017-I3 | 8000 | 14 | 8-35 |
| SYJ02017-I4 | 10000 | 16 | 8-35 |
| SYJ02417-I5 | 12000 | 20 | 8-35 |
III.Main data
| Main para-meter | 1 | Model :SYJ1608-I3 | Model :SYJ1617-I3 | Model :SYJ2008-I3 |
| 2 | Yearly capacity:8000mt | Yearly capacity:8000mt | Yearly capacity:10000mt | |
| 3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
| 4 | Casting strands :16 | Casting strands :16 | Casting strands :20 | |
| 5 |
Casting diameter: Ф8mm→Ф14.4mm |
Casting diameter: Ф17mm→Ф30mm |
Casting diameter: Ф8mm→Ф14.4mm |
|
| 6 | Casting speed:0～3000mm/min | Casting speed :0～1000mm/min | Casting speed:0～3000mm/min | |
| 7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
| 8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
| 9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
| 10 | Copper melting velocity:1020kg/h | Copper melting velocity:1020kg/h | Copper melting velocity:1270kg/h | |
| 11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
| 12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
| 13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod, manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
| 14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
| 15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
| 16 | Rod clamping method: air clamping | Rod clamping method: manual clamping | Rod clamping method: air clamping | |
| 17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
| 18 | Total power:400KW AC three-phase 380V | Total power:400KW AC three-phase 380V | Total power:500KW AC three-phase 380V | |
| Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
IV.Feature
i) Stable product quality;
ii) Low energy consumption;
iii) Removable inductor maintain easily;
iv) PLC controlling, and servo motor driven system;
v) Automatic collecting,& single plate weight over 3 TONS;
vi) Manpower: 2 persons each shift.
V.Flow Chart
Induction furnace→continuous casting crystalling→ traction device for upward
↓
output frame
↓
take-up machine (for coil) ←tension frame (control peed ) ← distribution frame
