Product Details:
Payment & Shipping Terms:
|
| Material: | Copper Or Copper Alloy | Controlling: | PLC+Touch Screen |
|---|---|---|---|
| Power: | 22kw-500kw | Color: | User Defined |
| Capacity: | 2.5ton/hour | Function: | Make Rod Thickness |
| High Light: | copper rod mill,roll mill machine |
||

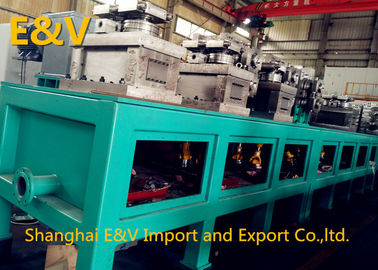

2.5 Ton / Hour 17Mm Rod Copper Bar Cold Rolling Mill With Separate Motor
Equipment Description
The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ17mm to Φ8mm.
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.
Main Parameter
| No. | item | Parameter |
| 1 | Model: | Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc. |
| 2 | Input dia | 55mm,35mm,25mm,20mm,17mm,16mm,14.4mm,12.5mm,8mm etc. |
| 3 | Output dia | 20mm,18mm,17mm,8mm,6mm,5mm,4mm,3 mm etc. |
| 4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
| 5 | Rolling pass | 2-16 or as each customer’s requirements |
| 6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling. |
| 7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
| 8 | total extend compression ratio | 2-10, or as each customer’s requirements |
| 9 | each pass compression ratio | 1.15~1.4(hole type can change) |
| 10 | Total power | 100kw~500kw |
| 11 | Running mode | Each frame separate transmission speed controlled by frequency or AC servo |
| 12 | Operation mode | PLC control, touch screen display,can improve to DCS control or networking |
| 13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted triangle |
| 14 | nominal roller dia | 200mm(double-groove/multi-groove),248mm(double-groove/multi-groove),264mm,300mm,370mm,400mm etc. |
| 15 | No. of frame | 2-16 or more |
| 16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
| 17 | roller material | other imported material etc. |
| 18 | rolling mill size |
a complete production line: length 18m *width 6 m*height 2.5m Main machine : length 7.6m*width 2.3m *height 2m |
| 19 | height of center | height from the ground 1230mm |
Terms Of Payment
1. Thirty percent (30%) earnest money of the total price stipulated in the contract should be paid
within 7 working days since the day both parties signed or stamped on the contract.the contract
will take effect on the day all the earnest money is received.
2. Seventy percent (70%) of the total price stipulated in the contract should be paid by T/T before
shipment. The shipment will be arranged when the payment is received.
3. All payments should be paid by T/T or bank draft to seller 's bank account.
Installation, Adjustment and Acceptance
