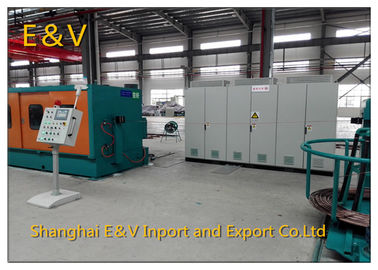

AC frequency motor Multi - motor Copper Rolling Mill with PLC control 10* 22kw

AC frequency motor Multi - motor Copper Rolling Mill with PLC control 10* 22kw
AC frequency motor Multi - motor Copper Rolling Mill with PLC control 10* 22kw

Large Image :  AC frequency motor Multi - motor Copper Rolling Mill with PLC control 10* 22kw

Product Details:
Place of Origin: China
Brand Name: EV
Model Number: JC-RM248(Ф20-Ф8)-10P-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad export packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Material: Copper Or Copper Alloy Rolling Size: 20-8
Power: 200kw Size For Machine: 12000*6000*2300mm
Capacity: 2.5ton/hour Function: Make Rod Thickness
High Light:

copper rod mill

,

roll mill machine

10* 22kw AC frequency motor Multi-motor Cold Copper Rolling Mill with PLC contorl

Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device



Unit instructions

1 main rolling mill

The main rolling mill is the important part of the continuous cold rolling mill . It includes base, frame, reducer, motor etc. Each frame is driven by an independent motor. All the basic rolling process is finished on the main rolling mill, and the number of the frames is different according to different rolling size.



2 guide system

2.1 each pass has entry and exit guide, odd frame of entry guide glides to lead in, and even frame rolls glides to lead in.

2.2 guide material : GCr15

2.3 guide hardness: HRC55-58



3 pay off

3.1 scope of application : Φ20mm

3.2 max dia : Φ1600mm

3.3 max load capacity :3t

3.4 inside frame dia: Φ500mm

3.5 height of bobbin : 1000mm



4 Coiling take-up machine

1 This machine consists of draught gear and take-up device, meets the characteristics of taking-up enclosure and requirements of constant taking-up speed. As the rotate speed must be steplessly adjusted within certain area, the AC inverter motor is adopted, and connected with rolling motor. The traction power is from the AC inverter motor, and goes through the drive shaft to drive the coiling basket.



2 scope of application:Ф8.0mm

3 max dia of looping:Ф1500mm

4 max pulling speed:3m/s

5 max weight of looping:3ton

6 traction electric motor:power 3kw,can speed regulation and linkage with rolling mill

7 coiling electric motor:power 3kw, can speed regulation and linkage with rolling mill



5 Oil lubrication system

5.1 oil flows through pump to filter, passes roll organization and oil tube of the main reduction

box ,then flows through branch oil tube, bearing to spray oil lubrication. It includes:

5.2 oil pump: KCB-55 1

5.3 filter: SPL-40-B-X 1

5.4 oil box: 1m3 1

5.6 max stream flow: 2.3m3/h

5.7 working pressure: 0.33MPa

5.8 oil temperature: 35~45℃

5.9 oil tank capacity: 1m³

5.10 cooling way: use external circulating water cooling



6 Emulsion system

6.1 In order to improve the surface quality of the cold rolling copper rod, emulsion cool and lubricate the roller , copper rod and guide device in the rolling process. The emulsion coming out from the emulsion station flows into main tube, and then use joint to connect to rolling system and guide device. The return emulsion flows back to the return groove on the rolling pedestal and then flows into the emulsion pool through returning main tube.

6.2 centrifugal pump: 50BPZ-42 20m3/h 1 (provided by buyer)

6.3 filter: SLQ-50 1 (provided by buyer)

6.4 max stream flow:25m3/h

6.5 working pressure:2.2kgf/cm2

6.6 emulsion temperature:35-45℃

6.7 emulsion pool volume:15m³

6.8 cooling way: self cooling

6.9 emulsion component: adopt DL178 which is used in big drawing machine,concentration 12%



7 electrical system

The electrical system includes the power system and the controlling system.

The power system supplies the power to each inductor through several power panels. The control system assures the normal producing, the recording and displaying of the data.



8 feeding and straightening device

The feeding and straightening device is in front of the main rolling mill, and it is used to straighten the rods so that it can feed the rod easier.



6 water cooling system

The water cooling system is an independent water recycling system which supplies the cooling water for the crystallizer, the water jacket and the induction coil. It includes one 80M2 water pool, water pump, pipelines and the cooling tower. It insures that the inlet water temperature is around 20-35℃, the flow rate is about 50m3. For a good heat exchanging effect, the user need to prepare the water soften device.



7 electric control system

The electric control system includes the power system and controlling system. The power system supplies the power to each inductor through several power panels. The control system assures the normal producing, the recording and displaying of the data. The detail recording and displaying information is inductor voltage, current, furnace temperature, water temperature(including the crystallizer water temperature), traction speed and traction distance etc.



8 feeding system

The feeding system feed the whole piece of copper cathode by the electric hoist. It assures that the copper cathodes is supplying to the melting furnace continuously.



9 temperature testing system

The temperature testing system includes two parts: copper liquid testing and water testing. The testing result is shown on both on the digital temperature meter and the industrial control scream for producing monitoring.



Delivery

1. Delivery time:90 working days after the complete receipt of the deposit.

  • The buyer bears the equipment transportation and insurance costs; the buyer provides unloading tools and bears the unloading costs.
  • When the equipment arrives at the buyer's site, the buyer should check the goods, sign written receiving records, and confirm the consistency between the goods and the lists of shipment.
