Water cooling Upward Casting Machine / copper rod making machine 8mm 12000t

Water cooling Upward Casting Machine / copper rod making machine 8mm 12000t
Water cooling Upward Casting Machine / copper rod making machine 8mm 12000t

Large Image :  Water cooling Upward Casting Machine / copper rod making machine 8mm 12000t

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ2408-I5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 12000mt
Function: Producing Copper Rod Strand Qty: 24
Product: 8mm Copper Rod Working Hour: 7920H
Name: Upcast Machine
High Light:

continuous casting machines

,

Vertical Casting Machine

,

Water cooling Upward Casting Machine

8mm 12000t Upward Continuous Casting Machine/copper rod making machine

Specifications

1.To produce oxygen free copper rod
2Suitable for different rod size
3Induction furnace
4Servo driving and PLC control

Upcast Machine

It is known as "upcast" technology for the production of oxygen free copper rod. With over years experience design and operation, the production line could be easily installed and operated. High quality of copper rod could be produced from the machine. It could have flexible production depend on the orders.

Main Composed Parts

a) furnace

b) Continuous casting machine

c) Rack of directive wheels

d) Speed controller

e) Two-stroke coiler

f) Cooling system

g) Temperature test system

h) Cathode charging system

i ) Electric control system

a)Line frequency induction furnace

The line frequency induction furnace includes furnace body ,furnace frame and inductor.

The shell of the furnace is made of welded steel, inside part is made of casted refractory brick and quarts sand. Furnace frame is used for propping up the whole furnace, it is fastened on the foundation by ground bolt, inductor composed of coil, water jacket, iron core and copper channel.The high voltage side of the inductor(primary)includes coil with cooling water, the voltage could be adjusted form 90V-420V(holding furnace is 90V-380V), the low voltage side of the inductor(secondary)includes short circuited copper channel, after electrifying,

b)continuous casting machine

The continuous casting machine is the main part to realize the continuous upcasting which includes the traction system, the level tracking system and the crystallizer, the structure is gantry four pillar.

The traction system includes two units of servo motor, reducer and traction rolling wheel, it could make 0-600 times high speed interval motion and make the copper rod come up though the traction rolling wheel, each unit of traction system could drive 10 pair traction rolling wheel, and drag 10 pcs copper rod separately.

c) output frame

The output frame is set up on the upper part of the casting machine. It includes the platform, the support, the vertical guide wheel and roller. It separates and feed the casted rods into each double head take up machine without influencing each other.

d)tension frame

The take up synchronizing device is a device which is set up between the output frame and the double head take up machine. There are twenty units of displacement transducers and swing link. By controlling the angle of the swing link, the speed of the take up machine can be controlled with high accuracy and high sensitivity, meantime it can supply the reliable signal for the automatic control.

e)double head take up machine

The double head take up machine includes the traction roller, the coiling device and the coiling plate. Each unit of the take up machine includes four or three motors controlling the two sides of take up device for two rods, the max coiling weight is 3.5ton.



f)water cooling system

The water cooling system is an independent water recycling system which supplies the cooling water for the crystallizer, the water jacket and the induction coil.

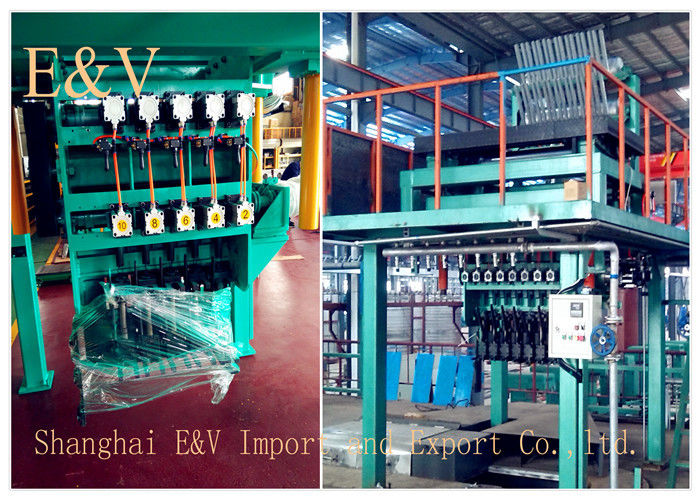

Water cooling Upward Casting Machine / copper rod making machine 8mm 12000t 0



No. Item Data
1 Model No SYJ2408-I5
2 Annual capacity 8000tons
3 Furnace structure 5 body
4 Casting Strands 24
6 Casting rod diameter: Ф8mm
7 Upward casting speed 0~3000mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 1520kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method air clamping
