Automatic Copper Rod casting Upcasting Machine with inverter motor

Automatic Copper Rod casting Upcasting Machine with inverter motor
Automatic Copper Rod casting Upcasting Machine with inverter motor

Large Image :  Automatic Copper Rod casting Upcasting Machine with inverter motor

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ1608-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 8000mt
Function: Producing Copper Rod Strand Qty: 16
Product: 8mm Copper Rod Working Hour: 7920H
Brand Name: E&V
High Light:

continuous casting machines


Vertical Casting Machine


casting Upcasting Machine with inverter motor

8mm 8000t Oxygen-free Copper Rod UpCasting Machine/Copper Rod casting Upcasting Machine



copper upcaster machine
shortens the copper processing time compared with traditional methods.

8mm 8000t Oxygen-free Copper Rod UpCaster Machine

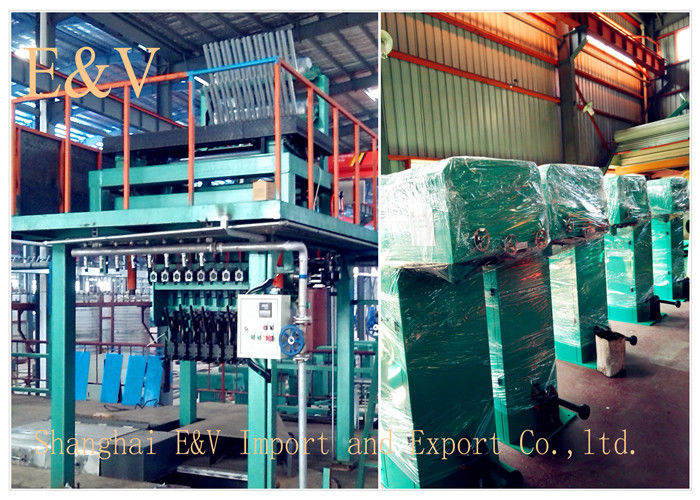

The upcasting line (unit for shot as here below) is used to produce the long and bright oxygen-free copper rod. The induction melting furnace melt the copper cathode into liquid, the liquid keeps off the air by charcoal or graphite flake in case of be oxidation. The holding furnace keeps the copper liquid temperature in 1150℃±10℃, the casting machine crystallizes the copper liquid in crystallizer quickly, then continuously produces copper rod, then the final product will be finished through the double head take up machine and other accessory equipment.

Main Composed Parts

a) furnace

b) Continuous casting machine

c) Rack of directive wheels

d)tension device

e) Two-stroke coiler

f) Cooling system

g) Temperature test system

h) Cathode charging system

i ) Electric control system

Automatic Copper Rod casting Upcasting Machine with inverter motor 0


No. Item Data
1 Model No SYJ1608-I3
2 Annual capacity 8000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands 16
6 Casting rod diameter: Ф8mm
7 Upward casting speed 0~3000mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 1020kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method air clamping



1. Delivery time: 60 working days after the complete receipt of the deposit.


2. The buyer bears the equipment transportation and insurance costs; the buyer provides

unloading tools and bears the unloading costs.

3. When the equipment arrives at the buyer's site, the buyer should check the goods, sign written

receiving records, and confirm the consistency between the goods and the lists of shipment.


Shanghai Congkang Imp & Exp Co., Ltd company profile


Founded in October, 2015, Shanghai Congkang Imp & Exp Co., Ltd is handling with import and export business for oxygen-free copper rod continuous casting machine, continuous casting and rolling machine for copper or aluminum rod, copper rod rolling mill and other metal complete plants.

Oxygen-free copper rod continuous casting machine can produce copper from Ф8mm to Ф35mm. Stable operation, good quality and nice coiling are our charming features and some foreign clients are fond of our goods vastly. Copper rod rolling mill from Ф17mm to Ф8mm has two roller stands or three roller stands. They are sell well in Malaysia, Thailand, North Korea, Egypt, Algeria and other areas and countries for their appearance,

We are located in Shanghai Free Trade Zone, which is gathered with China’s economy, finance, trading and shipping. At mouth of Yangtze, Shanghai closes to south Hangzhou bay and west Jiangsu and Zhejiang provinces and convenient transportation is the best character. Creation, quality and service are our founding ideas. We devote ourselves to attract new creation, control product quality, full services tracking and be high quality equipment. At present, we are growing well, good reputation and services are getting trust of customers at home and abroad. Now we sincerely hope that you and me hand in hand to create more beautiful future life!
