8mm 6000t PLC control Upward Casting Machine / wire making machine

8mm 6000t PLC control Upward Casting Machine / wire making machine
8mm 6000t PLC control Upward Casting Machine / wire making machine

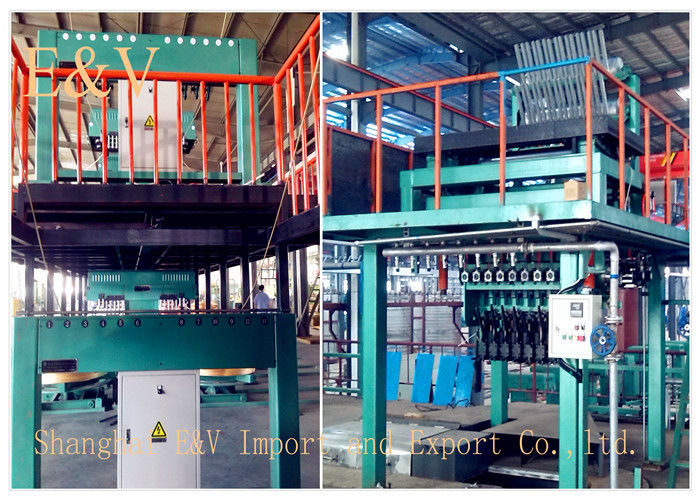

Large Image :  8mm 6000t PLC control Upward Casting Machine / wire making machine

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ2030-I5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 6000mt
Function: Producing Copper Rod Strand Qty: 8
Product: 8mm Copper Rod Working Hour: 7920H
Condition: New, New Place Of Origin: Shanghai, China
High Light:

continuous casting machines

,

Vertical Casting Machine

,

PLC controlled Upward Casting Machine

Specifications

copper upcaster machine
shortens the copper processing time compared with traditional methods.

8mm 6000t Oxygen-free Copper Rod UpCaster Machine



Usage

The Oxygen-free Copper Rod Upcast Machine break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process. Currently, heating process is being constantly replaced while the deep processing way with high-precision tensile machine and continuous extruder has been worldwide accepted as the main method of producing pure copper wire, brass wire and low alloys (Ag-Cu, Mg-Cu etc).



Main Composed Parts

a) furnace

b) Continuous casting machine

c) Rack of directive wheels

d) Speed controller

e) Two-stroke coiler

f) Cooling system

g) Temperature test system

h) Cathode charging system

i ) Electric control system

8mm 6000t PLC control Upward Casting Machine / wire making machine 0



No. Item Data
1 Model No SYJ1208-I3
2 Annual capacity 6000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands 12
6 Casting rod diameter: Ф8mm
7 Upward casting speed 0~3000mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 760kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method air clamping





1. Delivery time: 60 working days after the complete receipt of the deposit.



2. The buyer bears the equipment transportation and insurance costs; the buyer provides

unloading tools and bears the unloading costs.

3. When the equipment arrives at the buyer's site, the buyer should check the goods, sign written

receiving records, and confirm the consistency between the goods and the lists of shipment.
