Product Details:
Payment & Shipping Terms:
|
Color: | Optional | Yearly Capacity: | 3000mt-10000mt |
---|---|---|---|
Function: | Producing Copper Rod | Product: | Brass Rod |
Working Hour: | 7920h | Strand NO.: | 6-20 |
Highlight: | Brass Casting Machines,Brass Casting equipment,10000mt Rod Up Brass Casting Machine |

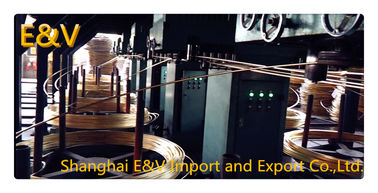

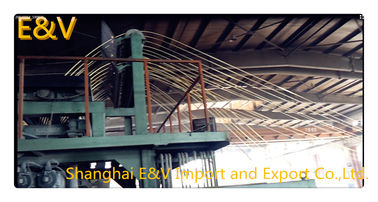

1000mt - 10000mt Rod Up Brass Casting Machine Complele Line 300 Type Three Body Furnace
Main Technology Parameter For Brass Rod Up-casting Machine1
2000MTΦ8mm→Φ14.4mm |
2000MTΦ17mm→Φ30mm |
3000MTΦ8mm→Φ14.4mm |
||
Main para-meter | 1 | Model: SYJ0408-I2 | Model: SYJ0417-I2 | Model: SYJ0608-I3 |
2 | Yearly capacity:2000mt | Yearly capacity:2000mt | Yearly capacity:3000mt | |
3 | Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) | Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands:4 | Casting strands:4 | Casting strands:6 | |
5 | Casting rod diameter : Φ8mm→Φ14.4mm | Casting rod diameter : Φ17mm→Φ30mm | Casting rod diameter : Φ8mm→Φ14.4mm | |
6 | casting speed:0~3000mm/min | casting speed: 0~1000mm/min | casting speed: 0~3000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:260kg/h | Copper melting velocity:260kg/h | Copper melting velocity:380kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by copper rod,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method:air clamping | Rod clamping method: manual clamping | Rod clamping method:air clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:150KW AC three-phase 380V | Total power:150KW AC three-phase 380V | Total power:200KW AC three-phase 380V | |
Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2. stepless automatic temper controlling, 3. full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
Main Technology Parameter For Copper Rod Up-casting Machine2
3000MT Ф17mm→Ф30mm |
5000MT Ф8mm→Ф14.4mm |
5000MT Ф17mm→Ф30mm |
||
Main Para-meter |
1 | Model: SYJ0617-I3 | Model: SYJ1008-I3 | Model: :SYJ1017-I3 |
2 | Yearly capacity:3000mt | Yearly capacity:5000mt | Yearly capacity:5000mt | |
3 | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands:6 | Casting strands:10 | Casting strands:10 | |
5 |
Casting rod diameter : Ф17mm→Ф30mm |
Casting rod diameter : Ф8mm→Ф14.4mm |
Casting rod diameter : Ф17mm→Ф30mm |
|
6 | casting speed:0~1000mm/min | casting speed:0~3000mm/min | casting speed:0~1000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:380kg/h | Copper melting velocity:650kg/h | Copper melting velocity:650kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | |
13 | Take-up plate driven approach: pushed by copper rod,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by copper rod,manual adjusting | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method:manual clamping | Rod clamping method:air clamping | Rod clamping method: manual clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:200KW AC three-phase 380V | Total power:240KW AC three-phase 380V | Total power:240KW AC three-phase 380V | |
Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
Main Technology Parameter For Copper Rod Up-casting Machine3
8000MTФ8mm→Ф14.4mm |
8000MTФ17mm→Ф30mm |
10000MTФ8mm→Ф14.4mm |
||
Main para-meter | 1 | Model :SYJ1608-I3 | Model :SYJ1617-I3 | Model :SYJ2008-I3 |
2 | Yearly capacity:8000mt | Yearly capacity:8000mt | Yearly capacity:10000mt | |
3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands :16 | Casting strands :16 | Casting strands :20 | |
5 |
Casting diameter: Ф8mm→Ф14.4mm |
Casting diameter: Ф17mm→Ф30mm |
Casting diameter: Ф8mm→Ф14.4mm |
|
6 | Casting speed:0~3000mm/min | Casting speed :0~1000mm/min | Casting speed:0~3000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:1020kg/h | Copper melting velocity:1020kg/h | Copper melting velocity:1270kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod, manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method: air clamping | Rod clamping method: manual clamping | Rod clamping method: air clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:400KW AC three-phase 380V | Total power:400KW AC three-phase 380V | Total power:500KW AC three-phase 380V | |
Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
Main Technology Parameter For Copper Rod Up-casting Machine4
10000MTФ17mm→Ф30mm |
12000MTФ8mm→Ф14.4mm |
12000MTФ17mm→Ф30mm |
||
Main para-meter | 1 | Model :SYJ2017-I3 | Model :SYJ2408-I3 | Model :SYJ2417-I3 |
2 | Yearly capacity:10000mt | Yearly capacity:12000mt | Yearly capacity:12000mt | |
3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands:20 | Casting strands:24 | Casting strands:24 | |
5 |
Casting diameter: Ф17mm→Ф30mm |
Casting diameter: Ф8mm→Ф14.4mm |
Casting diameter: Ф17mm→Ф30mm |
|
6 | Casting speed :0~1000mm/min | Casting speed 0~3000mm/min | Casting speed 0~1000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:1270kg/h | Copper melting velocity:1520kg/h | Copper melting velocity:1520kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | |
13 | Take-up plate driven approach: pushed by rod ,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod ,manual adjusting | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method: manual clamping | Rod clamping method: air clamping | Rod clamping method: manual clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:500KW AC three-phase 380V | Total power:600KW AC three-phase 380V | Total power:600KW AC three-phase 380V | |
price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
some questions for up casting machine ,maybe u are interested in
1.What’s annual capacity of upcasting machine?
Our machine can produce 1000-12000 tons products yearly.
2.What’s size of upcasting machine can produce?
8-35mm.
3.Which type upcasting machine can make?
Copper rod, copper tube and copper strip.
4.Can you give me technical performance of oxygen-free copper rod? And can they achieve the basic standard?
Yes, our technical performance can get the basic standard. Specific weight of the casting rod is -8.9g/cmآ², extensile rate of the casting rod is 170N/mmآ²ï¼Œtensile strength is 38%, conductivity is 100-102%IACS and oxygen content is <10ppm.
