Small High Capacity Vertical Brass Casting Machine PLC Control For 8mm Brass Rod

Large Image : Small High Capacity Vertical Brass Casting Machine PLC Control For 8mm Brass Rod

Product Details:

Place of Origin:	China
Brand Name:	E&V
Model Number:	SYJ0608-I3

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	standrad packing
Delivery Time:	60 DAYS
Supply Ability:	1SET PER MONTH

Contact Now

Detailed Product Description

Color:	Optional	Yearly Capacity:	3000mt
Function:	Producing Copper Rod	Product:	8mm Brass Rod
Working Hour:	7920h	Strand NO.:	6
High Light:	Brass Casting Machines , Brass Casting equipment , Brass Casting Machine PLC Control

Small High Capacity Vertical Brass Casting Machine PLC Control For 8mm Brass Rod

Main Technology Parameter For Brass Rod Up-casting Machine1

Main Technology Parameter For Copper Rod Up-casting Machine2

Main Technology Parameter For Copper Rod Up-casting Machine3

Main Technology Parameter For Copper Rod Up-casting Machine4

layout drawing machine for reference

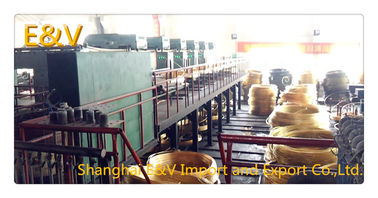

Small High Capacity Vertical Brass Casting Machine PLC Control For 8mm Brass Rod 0

some questions for this machine, maybe u are interested in

1. is the machine can produce copper and brass together ?

yes, the machine can produce copper rod , brass also , but not together .

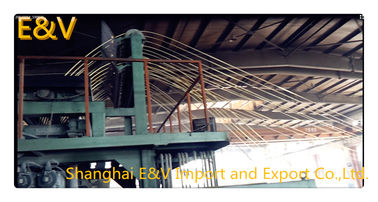

Small High Capacity Vertical Brass Casting Machine PLC Control For 8mm Brass Rod 1

Welome to contact us

Tag:

continuous caster machine,

Brass Casting equipment,

Brass Casting Machines

Contact Details

SHANGHAI E&V IMPORT AND EXPORT CO.,LTD

Contact Person: Cherry

Tel: +8613957382707

Other Products

1000mt - 10000mt Rod Up Brass Casting Machine Complele Line 300 Type Three Body Furnace

color: optional

Yearly Capacity: 3000mt-10000mt

function: producing copper rod

product: Brass rod

High Speed Brass Rod Continous Casting Machine 650 Kg/H Copper Melting Velocity

color: optional

Yearly Capacity: 3000mt-10000mt

function: producing copper rod

product: Brass rod

Upward Zn Cu Mixed Continuous Caster Machine With Frequency Automatic Adjustment

color: optional

Yearly Capacity: 3000mt-10000mt

function: producing copper rod

product: Brass rod

600KW Automatic Adjust Brass Casting Machine 350 kwh/ton AC Three Phase 380V

Yearly Capacity: 12000mt

product: Ф17mm→Ф30mm brass rod

strand NO.: 24

color: optional

Ф17mm - Ф30mm Brass Rod Continuous Caster Manual Adjusting Take - Up Plate Driven

Yearly Capacity: 10000mt

product: Brass rod

working hour: 7920h

strand NO.: 20

	2000MTΦ8mm→Φ14.4mm		2000MTΦ17mm→Φ30mm	3000MTΦ8mm→Φ14.4mm
Main para-meter	1	Model: SYJ0408-I2	Model: SYJ0417-I2	Model: SYJ0608-I3
	2	Yearly capacity:2000mt	Yearly capacity:2000mt	Yearly capacity:3000mt
	3	Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace)	Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace)	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands:4	Casting strands:4	Casting strands:6
	5	Casting rod diameter : Φ8mm→Φ14.4mm	Casting rod diameter : Φ17mm→Φ30mm	Casting rod diameter : Φ8mm→Φ14.4mm
	6	casting speed:0～3000mm/min	casting speed: 0～1000mm/min	casting speed: 0～3000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:260kg/h	Copper melting velocity:260kg/h	Copper melting velocity:380kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: frequency automatic adjust	Take-up form: automatic adjust	Take-up form: frequency automatic adjust
	13	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by copper rod,manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method:air clamping	Rod clamping method: manual clamping	Rod clamping method:air clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:150KW AC three-phase 380V	Total power:150KW AC three-phase 380V	Total power:200KW AC three-phase 380V

Price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

	3000MT Ф17mm→Ф30mm		5000MT Ф8mm→Ф14.4mm	5000MT Ф17mm→Ф30mm
Main Para-meter	1	Model: SYJ0617-I3	Model: SYJ1008-I3	Model: :SYJ1017-I3
	2	Yearly capacity:3000mt	Yearly capacity:5000mt	Yearly capacity:5000mt
	3	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands:6	Casting strands:10	Casting strands:10
	5	Casting rod diameter : Ф17mm→Ф30mm	Casting rod diameter : Ф8mm→Ф14.4mm	Casting rod diameter : Ф17mm→Ф30mm
	6	casting speed:0～1000mm/min	casting speed:0～3000mm/min	casting speed:0～1000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:380kg/h	Copper melting velocity:650kg/h	Copper melting velocity:650kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: automatic adjust	Take-up form: frequency automatic adjust	Take-up form: automatic adjust
	13	Take-up plate driven approach: pushed by copper rod,manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by copper rod,manual adjusting
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method:manual clamping	Rod clamping method:air clamping	Rod clamping method: manual clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:200KW AC three-phase 380V	Total power:240KW AC three-phase 380V	Total power:240KW AC three-phase 380V

Price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

	8000MTФ8mm→Ф14.4mm		8000MTФ17mm→Ф30mm	10000MTФ8mm→Ф14.4mm
Main para-meter	1	Model :SYJ1608-I3	Model :SYJ1617-I3	Model :SYJ2008-I3
	2	Yearly capacity:8000mt	Yearly capacity:8000mt	Yearly capacity:10000mt
	3	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands :16	Casting strands :16	Casting strands :20
	5	Casting diameter: Ф8mm→Ф14.4mm	Casting diameter: Ф17mm→Ф30mm	Casting diameter: Ф8mm→Ф14.4mm
	6	Casting speed:0～3000mm/min	Casting speed :0～1000mm/min	Casting speed:0～3000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:1020kg/h	Copper melting velocity:1020kg/h	Copper melting velocity:1270kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: frequency automatic adjust	Take-up form: automatic adjust	Take-up form: frequency automatic adjust
	13	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by rod, manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method: air clamping	Rod clamping method: manual clamping	Rod clamping method: air clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:400KW AC three-phase 380V	Total power:400KW AC three-phase 380V	Total power:500KW AC three-phase 380V

Price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

	10000MTФ17mm→Ф30mm		12000MTФ8mm→Ф14.4mm	12000MTФ17mm→Ф30mm
Main para-meter	1	Model :SYJ2017-I3	Model :SYJ2408-I3	Model :SYJ2417-I3
	2	Yearly capacity:10000mt	Yearly capacity:12000mt	Yearly capacity:12000mt
	3	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)	Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
	4	Casting strands:20	Casting strands:24	Casting strands:24
	5	Casting diameter: Ф17mm→Ф30mm	Casting diameter: Ф8mm→Ф14.4mm	Casting diameter: Ф17mm→Ф30mm
	6	Casting speed :0～1000mm/min	Casting speed 0～3000mm/min	Casting speed 0～1000mm/min
	7	annual working time:7920h	annual working time:7920h	annual working time:7920h
	8	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm	Liquid tracking precision:±2mm
	9	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm	Take-up coil standard: φ700mm×φ1500mm×800mm
	10	Copper melting velocity:1270kg/h	Copper melting velocity:1520kg/h	Copper melting velocity:1520kg/h
	11	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton	Copper melting power consumption:<350kwh/ton
	12	Take-up form: automatic adjust	Take-up form: frequency automatic adjust	Take-up form: automatic adjust
	13	Take-up plate driven approach: pushed by rod ,manual adjusting	Take-up plate driven approach: PLC control, frequency adjust,automatic coiling	Take-up plate driven approach: pushed by rod ,manual adjusting
	14	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist	Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
	15	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet	Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
	16	Rod clamping method: manual clamping	Rod clamping method: air clamping	Rod clamping method: manual clamping
	17	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen	Operation interface:date display,servo motor controlled by touch screen
	18	Total power:500KW AC three-phase 380V	Total power:600KW AC three-phase 380V	Total power:600KW AC three-phase 380V

price		A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)	A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
