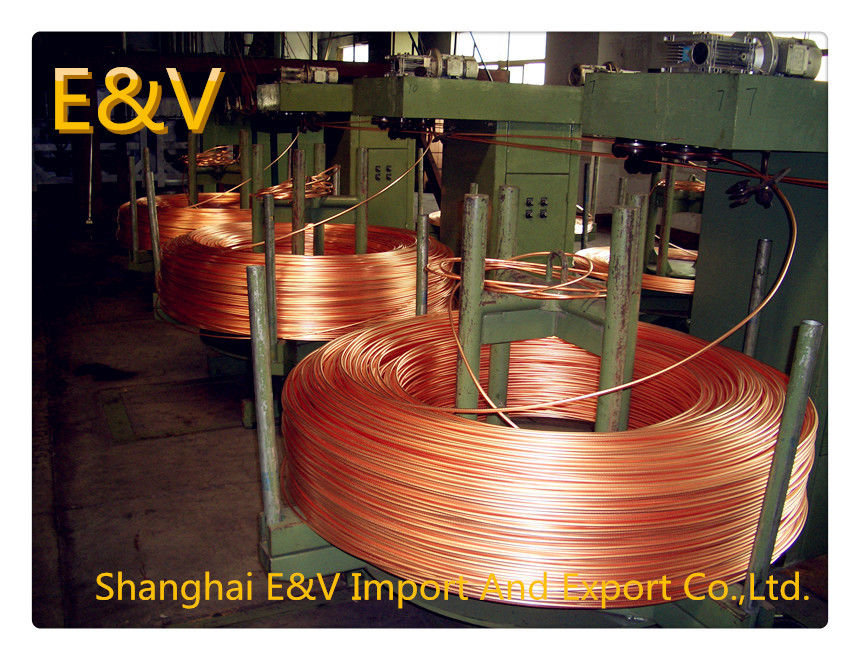

Oxygen Free Upward CCM 17mm Rod Copper Continuous Casting Machine 5000mt / y
Feature
1. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallzing quality.
2. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.
3. Quick lifting device is used for installing and changing the crystallizer, it can be finished within 10 seconds. When water or power supply stops, the crystallizer can be lifted quickly and leave the copper liquid.
Main Technology Parameter For Copper Rod Up-casting Machine1
2000MTΦ8mm→Φ14.4mm |
2000MTΦ17mm→Φ30mm |
3000MTΦ8mm→Φ14.4mm |
||
Main para-meter | 1 | Model: SYJ0408-I2 | Model: SYJ0417-I2 | Model: SYJ0608-I3 |
2 | Yearly capacity:2000mt | Yearly capacity:2000mt | Yearly capacity:3000mt | |
3 | Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) | Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands:4 | Casting strands:4 | Casting strands:6 | |
5 | Casting rod diameter : Φ8mm→Φ14.4mm | Casting rod diameter : Φ17mm→Φ30mm | Casting rod diameter : Φ8mm→Φ14.4mm | |
6 | casting speed:0~3000mm/min | casting speed: 0~1000mm/min | casting speed: 0~3000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:260kg/h | Copper melting velocity:260kg/h | Copper melting velocity:380kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by copper rod,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method:air clamping | Rod clamping method: manual clamping | Rod clamping method:air clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:150KW AC three-phase 380V | Total power:150KW AC three-phase 380V | Total power:200KW AC three-phase 380V | |
Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
Main Technology Parameter For Copper Rod Up-casting Machine2
3000MT Ф17mm→Ф30mm |
5000MT Ф8mm→Ф14.4mm |
5000MT Ф17mm→Ф30mm |
||
Main Para-meter |
1 | Model: SYJ0617-I3 | Model: SYJ1008-I3 | Model: :SYJ1017-I3 |
2 | Yearly capacity:3000mt | Yearly capacity:5000mt | Yearly capacity:5000mt | |
3 | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands:6 | Casting strands:10 | Casting strands:10 | |
5 |
Casting rod diameter : Ф17mm→Ф30mm |
Casting rod diameter : Ф8mm→Ф14.4mm |
Casting rod diameter : Ф17mm→Ф30mm |
|
6 | casting speed:0~1000mm/min | casting speed:0~3000mm/min | casting speed:0~1000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:380kg/h | Copper melting velocity:650kg/h | Copper melting velocity:650kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | |
13 | Take-up plate driven approach: pushed by copper rod,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by copper rod,manual adjusting | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method:manual clamping | Rod clamping method:air clamping | Rod clamping method: manual clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:200KW AC three-phase 380V | Total power:240KW AC three-phase 380V | Total power:240KW AC three-phase 380V | |
Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
Main Technology Parameter For Copper Rod Up-casting Machine3
8000MTФ8mm→Ф14.4mm |
8000MTФ17mm→Ф30mm |
10000MTФ8mm→Ф14.4mm |
||
Main para-meter | 1 | Model :SYJ1608-I3 | Model :SYJ1617-I3 | Model :SYJ2008-I3 |
2 | Yearly capacity:8000mt | Yearly capacity:8000mt | Yearly capacity:10000mt | |
3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands :16 | Casting strands :16 | Casting strands :20 | |
5 |
Casting diameter: Ф8mm→Ф14.4mm |
Casting diameter: Ф17mm→Ф30mm |
Casting diameter: Ф8mm→Ф14.4mm |
|
6 | Casting speed:0~3000mm/min | Casting speed :0~1000mm/min | Casting speed:0~3000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:1020kg/h | Copper melting velocity:1020kg/h | Copper melting velocity:1270kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod, manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method: air clamping | Rod clamping method: manual clamping | Rod clamping method: air clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:400KW AC three-phase 380V | Total power:400KW AC three-phase 380V | Total power:500KW AC three-phase 380V | |
Price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
Main Technology Parameter For Copper Rod Up-casting Machine4
10000MTФ17mm→Ф30mm |
12000MTФ8mm→Ф14.4mm |
12000MTФ17mm→Ф30mm |
||
Main para-meter | 1 | Model :SYJ2017-I3 | Model :SYJ2408-I3 | Model :SYJ2417-I3 |
2 | Yearly capacity:10000mt | Yearly capacity:12000mt | Yearly capacity:12000mt | |
3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
4 | Casting strands:20 | Casting strands:24 | Casting strands:24 | |
5 |
Casting diameter: Ф17mm→Ф30mm |
Casting diameter: Ф8mm→Ф14.4mm |
Casting diameter: Ф17mm→Ф30mm |
|
6 | Casting speed :0~1000mm/min | Casting speed 0~3000mm/min | Casting speed 0~1000mm/min | |
7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
9 |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
Take-up coil standard: φ700mm×φ1500mm×800mm |
|
10 | Copper melting velocity:1270kg/h | Copper melting velocity:1520kg/h | Copper melting velocity:1520kg/h | |
11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
12 | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | |
13 | Take-up plate driven approach: pushed by rod ,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod ,manual adjusting | |
14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
16 | Rod clamping method: manual clamping | Rod clamping method: air clamping | Rod clamping method: manual clamping | |
17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
18 | Total power:500KW AC three-phase 380V | Total power:600KW AC three-phase 380V | Total power:600KW AC three-phase 380V | |
price |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
|
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) |
Layout drawing for reference
some questions for this machine, maybe u are interested in
1.how many melting velocity of line frequency induction furnace?
350kwh/ton
2.Is it easy to change crystallizer?
Quick lifting device is used for installing and changing the crystallizer.High-speed installing (within 10 seconds). Using Emergency situation
