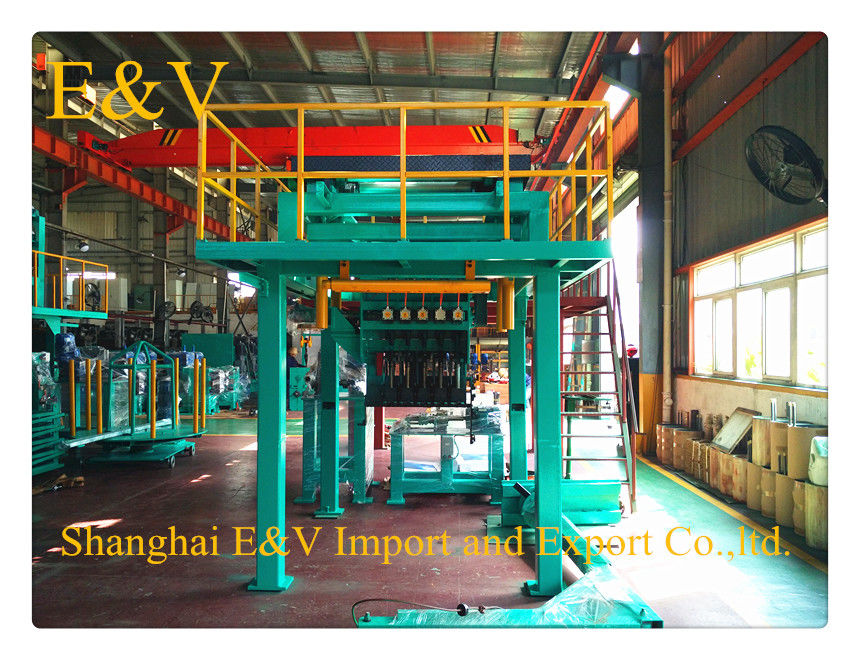

8-35 mm copper continuous casting machine for copper rod make

8-35 mm copper continuous casting machine for copper rod make
8-35 mm copper continuous casting machine for copper rod make

Large Image :  8-35 mm copper continuous casting machine for copper rod make

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: SYJ1008-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 60days
Supply Ability: 1set per month
Detailed Product Description
Machine: Continuous Casting Machine Function: Making Rod
Power(W): 150-200KW Color: Optional
Output Each Year: 1000t-12000t Casting Speed: 0-3000
High Light:

copper casting machine

,

copper rod casting machine

,

35 mm copper continuous casting machine

8-35 mm copper continuous casting machine for copper rod make



Dear friends,

Welcome to browse our product:



I, Equipment Introduction

The oxygen-free upwards continuous casting machine is mainly used for producing bright and oxygen-free copper rods and copper flat strips. Raw materials are molten in the melting furnace, and the copper liquid is covered with coke and flake graphite to avoid oxidation. After melting process, the holding furnace keeps the copper liquid temperature at about 1150°C. The casting machine crystallizes the copper liquid quickly in crystallizer, and continuously output copper rods (copper flat strips).

IIApplication

Upward Continuous Casting is new process of production for long length bright oxygen-free

copper rod. It has the characteristic of high conductivitylow oxygen content etc. After being

further processed, these rod can be used as conduct material of electrical wire and

cablemagnetism wire and enameled wire, and also can be used in other electronicelectric

products.

III, Main yearly output

Model Annual Output(tpyr) Casting Strands Qty Rod Dia(mm)
SYJ0208-I2 1000 2 8-35
SYJ0408-I2 2000 4 8-35
SYJ0608-I3 3000 6 8-35
SYJ01008-I3 5000 10 8-35
SYJ01208-I3 6000 12 8-35
SYJ01608-I3 8000 14 8-35
SYJ02008-I4 10000 16 8-35
SYJ02408-I5 12000 20 8-35



IV,Main data





3000MT Ф17mm→Ф30mm



5000MT Ф8mm→Ф14.4mm



5000MT Ф17mm→Ф30mm

Main

Para-meter

1 Model: SYJ0617-I3 Model: SYJ1008-I3 Model: :SYJ1017-I3
2 Yearly capacity:3000mt Yearly capacity:5000mt Yearly capacity:5000mt
3 Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:6 Casting strands:10 Casting strands:10
5

Casting rod diameter :

Ф17mm→Ф30mm

Casting rod diameter :

Ф8mm→Ф14.4mm

Casting rod diameter :

Ф17mm→Ф30mm

6 casting speed:0~1000mm/min casting speed:0~3000mm/min casting speed:0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:380kg/h Copper melting velocity:650kg/h Copper melting velocity:650kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:manual clamping Rod clamping method:air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:200KW AC three-phase 380V Total power:240KW AC three-phase 380V Total power:240KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





V,Technological process



copper cathode plate → melting furnace → holding furnace → up casting → coiling of

copper rod to produce oxygen free copper rod
