Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Rolling Mill | Rolling Size: | 20-8 |
|---|---|---|---|
| Rolling Speed: | 2.5t/h | Pass Schedule: | Ellipse-round Hole Type System |
| Rolling Pass: | As Needs | Color: | Optional |
| High Light: | 2 roll mill,two high rolling mill |
||
Main Parameter:
| No. | item | Parameter |
| 1 | Model: | Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc. |
| 2 | Input dia | Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc. |
| 3 | Output dia | Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc. |
| 4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
| 5 | Rolling pass | 2-16 or as each customer’s requirements |
| 6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling. |
| 7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
| 8 | total extend compression ratio | 2-10, or as each customer’s requirements |
| 9 | each pass compression ratio | 1.15～1.4(hole type can change) |
| 10 | Total power | 100kw～500kw |
| 11 | Running mode | Each frame separate transmission speed controlled by frequency or AC servo |
| 12 | Operation mode | PLC control, touch screen display,can improve to DCS control or networking |
| 13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted triangle |
| 14 | nominal roller dia | Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc. |
| 15 | No. of frame | 2-16 or more |
| 16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
| 17 | roller material | other imported material etc. |
| 18 | rolling mill size |
a complete production line: length 18m *width 6 m*height 2.5m Main machine : length 7.6m*width 2.3m *height 2m |
| 19 | height of center | height from the ground 1230mm |
55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm
20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
Main component
1. Rolling mill base
2. 2-roller motive power frame(including reducer, Inverter motor)
3. Pay-off frame
4. coiling take-up system
5. Lubrication system
6. Emulsion system

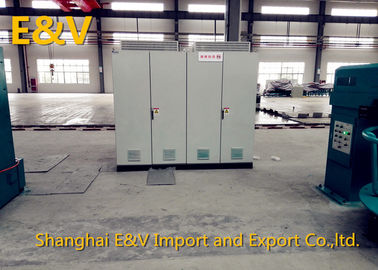

7. Electronic control system
8. straightening device
