High Efficient 20-8 mm Alloy Metal Triple Roll Mill Reducing Machine

High Efficient 20-8 mm Alloy Metal Triple Roll Mill Reducing Machine
High Efficient 20-8 mm Alloy Metal Triple Roll Mill Reducing Machine High Efficient 20-8 mm Alloy Metal Triple Roll Mill Reducing Machine

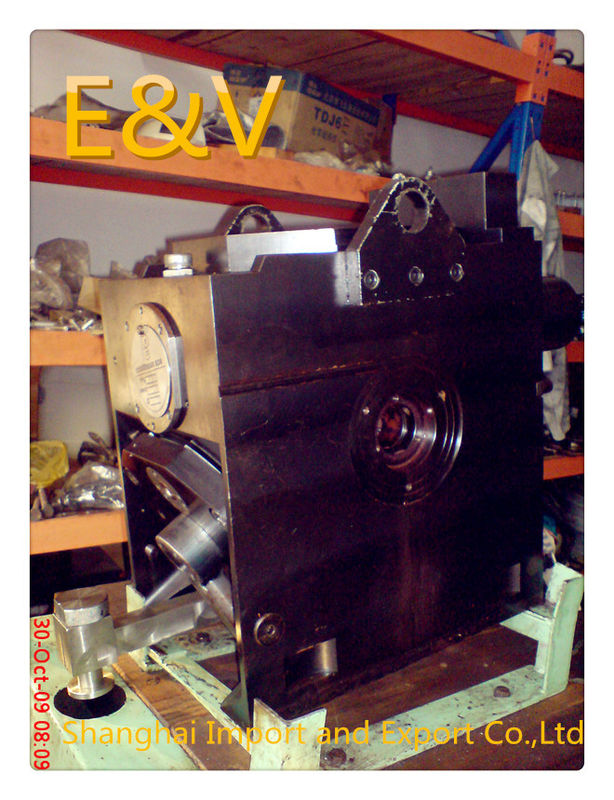

Large Image :  High Efficient 20-8 mm Alloy Metal Triple Roll Mill Reducing Machine

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: THJYJ
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Packaging Details: standred export packing
Delivery Time: 90 days
Detailed Product Description
Machine Name: 3 Roller Rolling Mill Type: Y Type
Roller: 248mm Feature: Efficient
Color: Optional Rolling Pass: 2-16
High Light:

3 roll mill

,

rolling mill machine

High Efficient 20-8 mm Alloy Metal Triple Roll Mill Reducing Machine





No.
item
Parameter
1
Model:
Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2
Input dia
Φ55mm,Φ35mm,Φ25mm,Φ20mm,Φ17mm,Φ16mm,Φ14.4mm,Φ12.5mm,Φ8mm etc.
3
Output dia
Φ20mm,Φ18mm,Φ17mm,Φ8mm,Φ6mm,Φ5mm,Φ4mm,Φ3 mm etc.
4
Outlet rod out of roundness
No more than 0.2mm after rolling, or more accurate
5
Rolling pass
2-16 or as each customer’s requirements
6
Rolling speed
Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7
Pass schedule
ellipse-round hole type system or triangular -round type system
8
total extend compression ratio
2-10, or as each customer’s requirements
9
each pass compression ratio
1.15~1.4(hole type can change)
10
Total power
100kw~500kw
11
Running mode
Each frame separate transmission speed controlled by frequency or AC servo
12
Operation mode
PLC control, touch screen display,can improve to DCS control or networking
13
type
2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14
nominal roller dia
Φ200mm(double-groove/multi-groove),Φ248mm(double-groove/multi-groove),Φ264mm,Φ300mm,Φ370mm,Φ400mm etc.
15
No. of frame
2-16 or more
16
Main motor
11kw-110kw AC frequency motor or AV servo motor for each
17
roller material
other imported material etc.
18
rolling mill size
A complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m
19
height of center
height from the ground 1230mm
