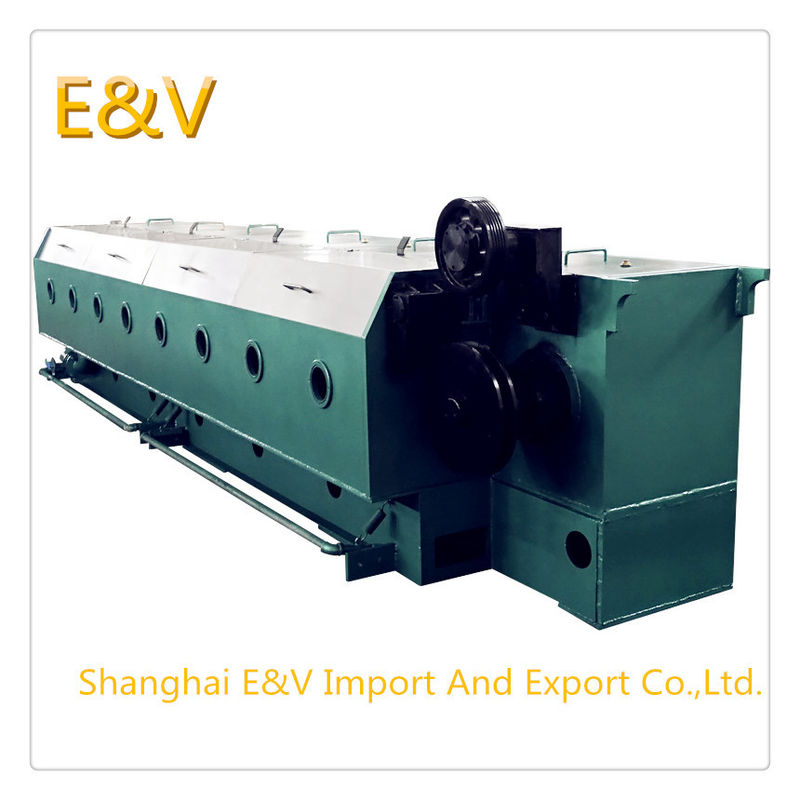

800m/min Frequency Control Copper Wire Metal Drawing Machine For Electrical

800m/min Frequency Control Copper Wire Metal Drawing Machine For Electrical
800m/min Frequency Control Copper Wire Metal Drawing Machine For Electrical

Large Image :  800m/min Frequency Control Copper Wire Metal Drawing Machine For Electrical

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: 9D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standred export packing
Delivery Time: 45 days
Supply Ability: 1set per month
Detailed Product Description
Color: Optional Machine Name: RBD/ Big Drawing Machine
Product Dia: 8mm Output Speed: 800m/min
Output Size: 3/26mm Feature: Efficient,high-quality
High Light:

wire rod drawing machine

,

wire drawing machine



800m/min Frequency Control Copper Wire Metal Drawing Machine For Electrical



1. Brief of introduction

9D big drawing machine for copper wire is used for producing oxygen free or low round copper wire and the biggest input size is 8mm. Through nine processes to continuous drawing copper rod 8mm to copper wire 3mm-2.6mm, using automatic plate for paying off and automatic coiling.



2. Main parameter

NO. Item Parameter
1 model DL400-9D big drawing machine for copper wire
2 inlet dia Φ8mm
3 outlet dia Φ3mm~Φ2.6mm
4 Drawing die numbers 9
5 line speed (max) 800MPM
6 structure of machine weld
7 Drawing speed 2t/h
8 Area reduction rate of m/c 23.6%
9 capstan reduction rate of m/c 20%
10 capstan Tungsten carbide
11 capstan dia (max) Φ400
12 Fix speed capstan dia (mm) Φ400
13 Total power 160kw,DC motor
14 coiling power 11kw /15kw three phase AC frequency motor
15 the way of controlling speed AC control +frequency control
16 transmission way Grinding gear(20CrMnTi Sophisticated helical gear )
17 Pay off way Overhead
18 Cooling way Fully immersed
19 service voltage Three phase 380V(AC),50Hz



some questions for this machine, maybe u are interested in





1 .What’s speed of 9Dbig drawing machine?



800m/min



2 .How about the Cooling way of big drawing machine?



Fully immersed



3. what size can drawing ?



from 8mm to 3mm/2.6mm
