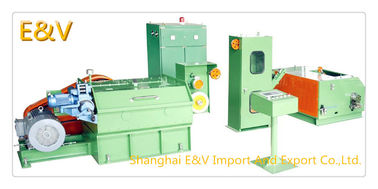

0.4mm Fine Wire Drawing Machine 1200m / min Spray Type Lubricating System

0.4mm Fine Wire Drawing Machine 1200m / min Spray Type Lubricating System
0.4mm Fine Wire Drawing Machine 1200m / min Spray Type Lubricating System

Large Image :  0.4mm Fine Wire Drawing Machine 1200m / min Spray Type Lubricating System

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: 17MDST
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export packing
Delivery Time: 35 days
Supply Ability: 1set per 35days
Detailed Product Description
Name: Medium Drawing Machine Color: Option
Input Size: 2.6/3.0mm Output Size: 0.4mm
Type: Four-axis Horizontal Outlet Speed: For Reference
High Light:

continuous wire drawing machine

,

wire drawing machinery

0.4mm Fine Wire Drawing Machine 1200m / min Spray Type Lubricating System



Main technical parameters

  •  type:four-axis horizontal
  •  inlet wire scope:Ф3.2-Ф2.0mm
  •  outlet wire scope:Ф0.4-Ф1.2mm
  •  highest machinery machine speed:1200m/min(with anneal highest 1000 m/min)
  •  outlet speed:(for reference)
Outlet dia(mm) 1.20-0.80 0.80-0.60 0.60-0.40
Outlet speed(m/min) 17MDS 600--300 800--600 1200--800
Outlet speed(m/min) 17MDST 600--300 800--600 1200--600
elongation of cord 25-33% 20-28% 22-25%



  • max eye mould:17
  • eye mould size:Ф30mm×15mmT or Ф25mm×10mmT

8. extend wire reduce rate:1-16 eye moulds: 15%

17 eye mould: 11%

9  extend wire lubricating system:spray type

10 quantity demaned of extend wire oil:100lit/min

11, drawing oil : 100 liter/minute

12, drawing machine use horsepower:45KW-4P

13, coiler use horsepower:11kw-4P induction motor

14, cable:90W motor cable,attach limit switch

15, security door:flip-up



0.4mm Fine Wire Drawing Machine 1200m / min Spray Type Lubricating System 0
