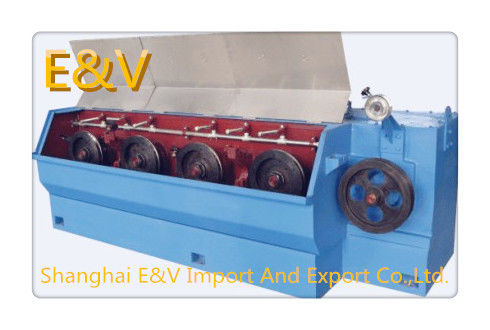

4 Payer 9 Dies Big Continuous Wire Drawing Machine Frequency Speed Mode
9D Big Drawing Machine Main Parameters
1) inlet dia(max): Φ8mm
2) outlet dia(min): Φ3mm
3) drawing number:9
4) Off line machine discharge line drum diameter: :Φ800mm
5) each average elongation:1.27
6) Elongation coefficient: 1.22~1.33
7) drawing speed: 6~8m/s
8) big drawing machine motor:75kw
9) take up machine motor:5.5kw
10) speed mode:frequency
Configuration Table
| 9DT MAX WIRE-SPEED 400MPM | ||
| No | Name | Specifications |
| 1 | inlet | 8mm |
| 2 | outlet | 3mm |
| 3 | main inverter | 75KW |
| 4 | main motor | 75KW |
| 5 | takeup motor | 5.5KW |
| 6 | relay | MK-2P |
| 7 | button | 1 set |
| 8 | Indicate lamp | 1 set |
| 9 | select switch | 1 set |
| 10 | stroke switch | 600W100Ω |
| 11 | bearing | 1 set |
| 12 | pulley | spray the surface of carbon dock |
| 13 | gear | 1 set |
| 14 | brake | air / hydraulic disc brakes |
| 15 | takeup type | off line |
| 16 | install capacity | 100KVA |
| 17 | size | 6500*1600*2100(mm) |
| 18 | weight | 2500KG |
| 19 | max capacity | 800KG/H |
| 20 | drawing wheel | 4set |
9D Big Drawing Machine Wearing Parts
| No | Name | Specifications | Quantity | Memo |
| 1 | drawing wheel | 4layer | 4 | |
| 2 | taking wheel | Φ396 | 1 | |
| 3 | detect wheel | Φ360 | 1 | |
| 4 | v-belt | 5 | ||
| 5 | guide cable wheel | Φ118 | 1 | |
| 6 | guide cable wheel | Φ118 | 1 | |
| 7 | over cable wheel | Φ180 | 1 | |
| 8 | coiler belt | 2 | ||
| 9 | light lamp | 20W | 1 | |
| 10 | fuse | 4A | 5 | |
| 11 | drawing die | pcs | 9 |
