high configuration Strip Casting Machine / Upward Copper Strip Casting Line

China high configuration Strip Casting Machine / Upward Copper Strip Casting Line supplier
high configuration Strip Casting Machine / Upward Copper Strip Casting Line supplier high configuration Strip Casting Machine / Upward Copper Strip Casting Line supplier

Large Image :  high configuration Strip Casting Machine / Upward Copper Strip Casting Line

Product Details:

Place of Origin: CHINA
Brand Name: E&V
Model Number: SYJ

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 60days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Machine Type: Strip Casting Machine Function: Making Copper Strip
Color: Optional Take-up Method: Coilling
Thickness: 8~15mm

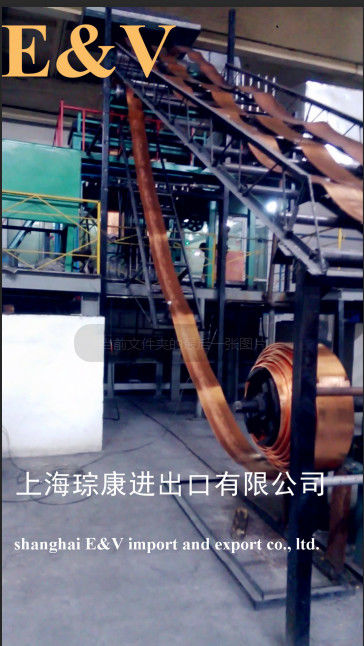

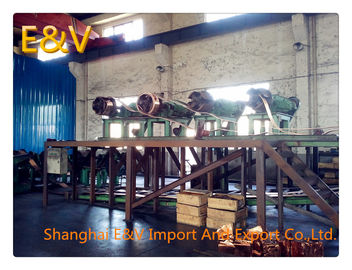

2017 high configuration copper strip upcasting machine/Upward Copper Strip Casting Machine Line



copper strip upcasting mahine

The continuous casting machine is the main part to realize the continuous up-casting which includes the traction system, the level tracking system and the crystallizer, the structure is gantry four pillar.



The traction system includes two units of servo motor, reducer and traction rolling wheel, it could make 0-600 times high speed interval motion and make the copper rod come up though the traction rolling wheel, each unit of traction system could drive 5 pair traction rolling wheel, and drag3 pcs copper rod separately.



The automatic level track system could insure that the crystallizer is in the stable depth in the copper liquid, and to make sure the producing is continuously.



The crystallizer could freeze the copper quick into solid-state by cooling it and realize the heat exchange, each crystallizer can be change and be controlled separately without any influence of other crystallizers’ normal working.

Main Technology Parameter Of Copper Strip Up-casting Machine





No. Item Parameter Remark
1 Model TPSYJ250*10*6-I3 Adjustable as per customer’s requirements
2 Yearly capacity 3000mt
3 Total power 250KW
4 Furnace structure three- body furnace(2melting furnace,1 holding furnace) Adjustable as per customer’s requirements
5 Casting strands 6 Adjustable as per customer’s requirements
6 Copper strip size 250*10mm Adjustable as per customer’s requirements
7 Casting speed 0-150mm/min
8 annual working time 7920h
9 Liquid tracking precision ±2mm
10 coiling standard 600kg/coil
11 Copper melting velocity 380kg/h Adjustable as per customer’s requirements
12 Copper melting power consumption ‹350kwh/ton
13 Take-up form Coiling
14 Feeding mode whole piece of electrolytic copper cathode fed by electric hoist
15 Driven mode 3pc copper strip:1pc 4.4kwservo motor
16



Rod clamping method

Manual clamping
Our advantages

1.Best quality

2.Lowest Price

3.Low consumption,power saving

4.Low production costs

5.Low labor costs

6.Latest design. New Configuration

7.Perfect service,timely customer response

8.No pollution
